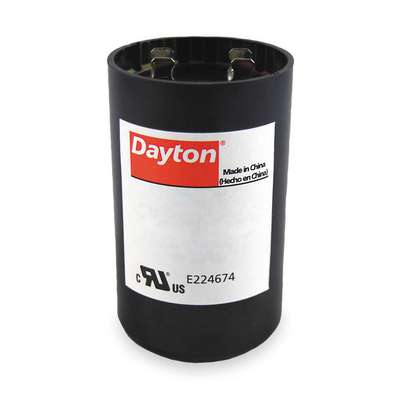

Dayton Motor Start Capacitor: 220 to 250V AC, 88-108, Round, 3 3/8 in Case Ht, 1 13/16 in Dia
Hover over image to magnify
#938793-1 | Pkg Qty: 1
$16.44 pkg
| $16.44 ea
Technical Specifications
Key Specifications
Brand
DAYTON
Item
Motor Start Capacitor
Capacitor Shape
Round
Number of Terminals
2
Case Height
3-3/8 in.
Overall Height
3-3/8 in.
Case Material
Plastic
Overall Width
1-13/16 in.
Connection Type
Quick Connect
Pack Quantity
1
Construction
Sealed Molded Phenolic Resin Case
Shape
Round
Diameter
1-13/16 in.
Standards
UL Recognized for US and Canada (E224674)
For Use With
Single-Phase AC Motor Starting Circuits
Terminals
2-blade Quick-connect Insulated
Hz
60/50
Voltage
220 to 250 VAC
General
Capacitor Voltage
220 to 250V AC
Starts per Hour
20
Max. Power Factor
0.1
Temp. Range
-40° to 65°C
Microfarad Rating
88-108
Terminal Gender
Male
Min. Temperature
-40 °C
Terminal Tab Width
1/4 in
Motor Capacitor Type
Motor Start Capacitor
Product Description
Start Capacitors
- Temp. range: -40° to 65°C (-40° to 149°F) Electrolytic, nonpolarized capacitors are designed for normal intermittent service on single-phase AC motor starting circuits. Round, molded cases protect the capacitor from oil, dirt, moisture, and grease. RoHS compliant. UL and C-UL Recognized.
Item Barcode
Motor Start Capacitor,88-108
