PARKER

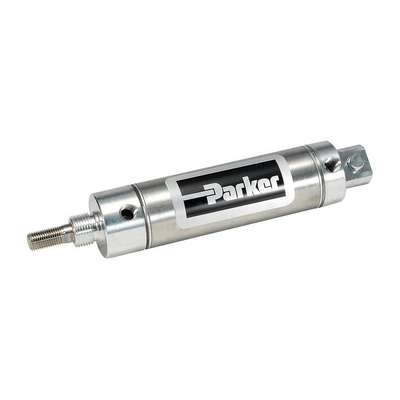

Air Cylinder: 1 1/2 in Air Cylinder Bore Dia., 5 in Stroke, 1/8 in FNPT Port Size, Round Body
#938759-5 | Pkg Qty: 1
$73.01 pkg | $73.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Cylinder Mount
Nose and Pivot
Dimension V
0.09 in.
Air Cylinder Type
Round Body
Dimension Y
1-1/2 in.
Body Material
Stainless Steel
End Cap Material
Aluminum
Brand
PARKER
Finish
Silver
Cushion Type
None
Item
Air Cylinder
Cylinder Action
Double Acting
Mfr. Part Number
1.50DPSR05.00
Cylinder Type
Round Non-Repairable
Mount
Nose and Pivot
Dimension A
3/4 in.
Mounting Style
Pivot and Nose
Dimension B
0.749 in.
Overall Length
10.5 in.
Dimension Cb
0.62 in.
Package Quantity
1
Dimension Cc
0.437 in.
Piston
Aluminum
Dimension Cd
0.376 in.
Piston Material
Aluminum
Dimension D
0.38 in.
Port Size
1/8 in. FNPT
Dimension E
0.62 in.
Shipping Weight
1.15 lb.
Dimension Kk
7/16"-20 UNF
Stroke
5 in.
Dimension L
0.50 in.
Tube Material
Stainless Steel
Dimension N1
3/4"-16
Type
Round Disposable Air Cylinder
General
Action Type
Double Acting
Piston Rod Material
Stainless Steel
Air Cylinder Bore Dia.
1 1/2 in
Pivot Hole Dia.
0.375 in
Air Cylinder Product Group
Air Cylinder
Rod Dia.
0.437 in
Bore Dia.
1 1/2 in
Rod Thread Length
0.75 in
End Caps
Aluminum
Rod Thread Size
7/16-20 UNF
Features
Non-Switch Ready
Single Acting/Double Acting
Double Acting
Nose Mount Thread
3/4"-16
Tang Width
0.62"
Piston Rod
Stainless Steel
Product Description
Can withstand a wide range of operating environments, and tolerate moisture and many types of lubricants and solvents. For use in applications where magnetic sensing piston is not required. Cylinder is dimensionally interchangeable with other major manufacturers' cylinders including Bimba, Norgren, and SMC.
