CONDOR USA, INC

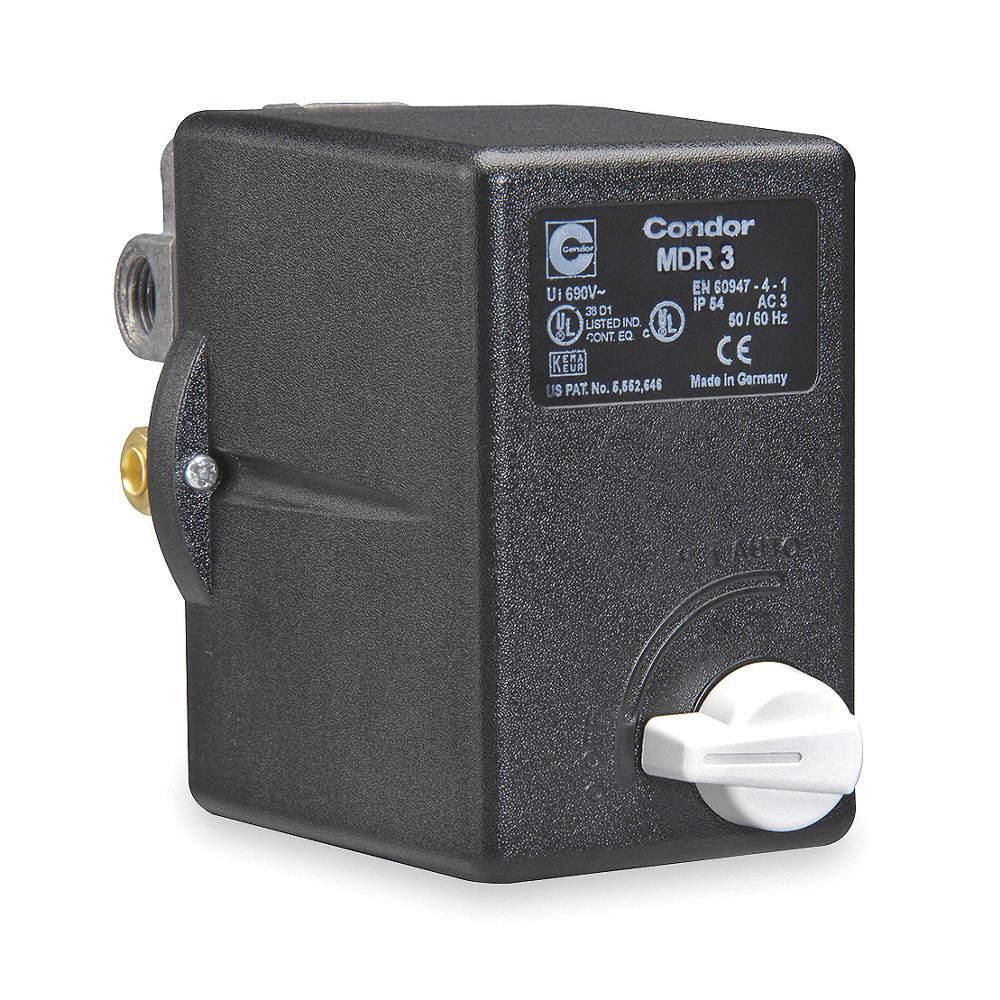

Condor Usa, Inc Pressure Switch: 100/125 psi, 15 to 70 psi, 45 to 160 psi, Single Phase, DPST
Hover over image to magnify
#938678-8 | Pkg Qty: 1
$163.20 pkg | $163.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
30A
Package Quantity
1
Action
Standard
Phase
Single
Actuation Type
Diaphragm
Port Type
4-Port (1) 3/8 in. and (3) 1/4 in. FNPT
Amperage
30 A
Pressure Switch Action
Standard
Brand
CONDOR USA, INC
Pressure Switch Application
Air Compressor
Burst Pressure
580 PSI
Pressure Switch Differential
15 to 70 PSI
Contact Form
DPST
Pressure Switch Electrical Contact Form
DPST
Contact Type
DPST
Pressure Switch Factory On/Off Setting
100/125 PSI
Differential
15 to 70 PSI
Pressure Switch Port Type
(1) 3/8 in. FNPT, (3) 1/4 in. FNPT, (4) Port
Enclosure
NEMA 1
Pressure Switch Range
45 to 160 PSI
Factory On/Off Setting
100/125 PSI
Pressure Switch Unloader
1/4 in. Compression
IP Rating
54
Range
45 to 160 PSI
Item
Pressure Switch
Series
MDR3/OL
Manual Switch Action
Auto/Off/Reset
Shipping Weight
1.65 lb.
Mfr. Part Number
31GG3EMX
Type
Air Compressor
NEMA Rating
1
Unloader
1/4 in. Compression
Number of Ports
4
General
Application
Air Compressor
Overload Protection
22 to 30A
HP @ 1 Phase - 120V
2 hp
Special Features
35 Bar Maximum Cut-Out Pressure, 7.5 (11) kW Switching Capacity
HP @ 1 Phase - 230V
5
Standards
CSA and CE Certified
HP @ 1 Phase - 240V
5 hp
Temp. Range
-22° to 257°F
Includes
Overload Protection
Product Description
This pressure switch is designed for use with air compressors. It features an actuation-type diaphragm.
