HUBBELL WIRING DEVICE-KELLEMS

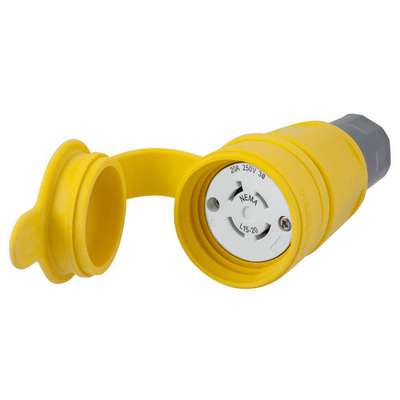

Hubbell Wiring Device-Kellems Watertight Locking Connector: L15-20R, 20, 250V AC, 3 Poles, Yellow

Hover over image to magnify
Connector,L15-20R,20A,250VAC,
Connector,L15-20R,20A,250VAC,

#938530-2 | Pkg Qty: 1

$126.83 pkg | $126.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
20 A
Mfr. Part Number
HBL27W75
Amps
20 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
Press-On Cap
NEMA Configuration - Plugs & Connectors
L15-20
Color Family
Yellow
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Connection Orientation
Straight
NEMA Plug Configuration
L15-20R
Contact Material
Nickel-Plated Brass
NEMA Rating
4, 4X, 6, 6P
Cord Size
0.325 in to 0.875 in
NEMA Receptacle Configuration
L15-20R
Corrosion Resistant
No
Number of Poles
3
Current Rating
20 A
Number of Wires
4
Description
Twist Lock Watertight Connector
Outside Diameter
2.51 in.
For Maximum Cable Diameter
0.875 in.
Overall Length
2.51 in.
For Minimum Cable Diameter
0.375 in.
Package Quantity
1
Grade
Industrial/Commercial
Phase
Three
HP
3 HP
Power Indicating Light
No
Horsepower
3 hp
Power Indicator
No
Housing Color
Yellow
Shipping Weight
.75 lb.
Housing Material
Thermoplastic Elastomer
Shrouded
Yes
IP Rating
IP69K
Standards
ANSI
Item
Watertight Locking Connector
UL 94 Flammability Rating
HB
Material
Thermoplastic Elastomer, Valox
Voltage
250VAC
Material of Construction
Thermoplastic Elastomer, Valox
Voltage Rating
250V AC
Maximum Operating Temperature
60 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
10 AWG
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L15-20R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
250V AC
HP
3.0

Product Description

Features keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.
