SAWSTOP

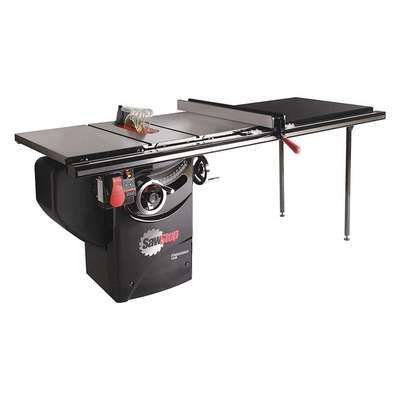

SawStop PCS175‐TGP252 10 in., Corded, Cabinet Table Saw; 4000 RPM Max. Speed, Single Phase

Hover over image to magnify
Cabinet Table Saw,4000 Rpm
PI_Asset_1981324
PI_Asset_1987848
PI_Asset_1990816
PI_Asset_1992862
Cabinet Table Saw,4000 Rpm
PI_Asset_1981324
PI_Asset_1987848
PI_Asset_1990816
PI_Asset_1992862

#938529-6 | Pkg Qty: 1

$3,844.43 pkg | $3,844.43 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Arbor Size
5/8 in.
Overall Height
34 in.
Blade Diameter
10 in.
Overall Width
85-1/4 in.
Brand
SAWSTOP
Package Quantity
1
Current Rating
14 A
Phase
Single
Horsepower
1.7 HP
Shipping Weight
503 lb.
Item
Corded Cabinet Table Saw
Stand Type
Cabinet
Maximum Speed
4000 RPM
Variable Speed
No
Mfr. Part Number
PCS175TGP252
Voltage
120V AC
General
Arbor Shape
Round
Max. Cutting Depth @ 45 Deg.
2-1/4 in.
Automatic Blade Safety Retraction
Yes
Table Front of Blade
10-1/4 in.
Bevel Angle Range
0 Degrees to 45 Degrees Left
Table Length
27 in.
Max. Cut Width Left of Blade
12 in.
Table Surface w/Extension
84-1/8 in. x 27 in.
Max. Cut Width Right of Blade
52 in.
Table Width
85-1/4 in.
Max. Cutting Depth @ 0 Deg.
3-1/8 in.
Table Width with Extension
85-1/4 in.

Product Description

These cabinet table saws have a safety feature that automatically retracts the saw blade when any part of the worker's body, such as hands or arms, touches the blade. Floorstanding cabinet table saws have an extended surface on both sides of the blade to support large workpieces and sheet goods, providing more precise cuts and control than circular saws and portable table saws. Cabinet table saws are plugged into a wired power source and are not intended to be moved.
