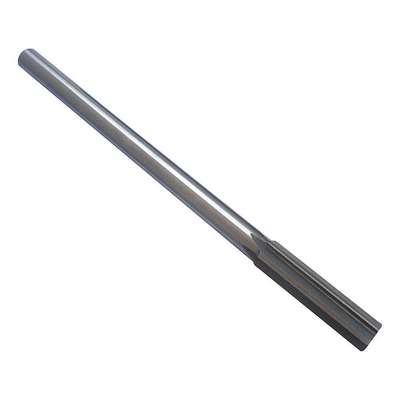

Chucking Reamer: 13/32 in Reamer Size, 1 3/4 in Flute Lg, 7 in Overall Lg
#938392-4Pkg Qty: 1
$60.79 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Cutting Direction
Right
Dimension Type
Fractional Inch
Finish
Bright (Uncoated)
Flute Length
1-3/4 in.
Flute Type
Straight
Item
Chucking Reamer
Material
High Speed Steel
Mfr. Part Number
11V332
Number of Flutes
6
Overall Length
7 in.
Package Quantity
1
Product Size
13/32 in.
Reamer Application
Through Hole
Shank Diameter
25/64 in.
Shank Size
0.4062 in.
Shank Type
Straight
Shipping Weight
.05 lb.
Size
13/32 in.
Brand
APPROVED SUPPLIER
Overall Length
7 in.
Cutting Direction
Right
Package Quantity
1
Dimension Type
Fractional Inch
Product Size
13/32 in.
Finish
Bright (Uncoated)
Reamer Application
Through Hole
Flute Length
1-3/4 in.
Shank Diameter
25/64 in.
Flute Type
Straight
Shank Size
0.4062 in.
Item
Chucking Reamer
Shank Type
Straight
Material
High Speed Steel
Shipping Weight
.05 lb.
Mfr. Part Number
11V332
Size
13/32 in.
Number of Flutes
6
General
Application
For Aluminum, Alloyed, Stainless And Tool Steels, Cast Iron And Plastic
Chamfer
45 deg.
Cutting Direction - Machining
Right Hand
Decimal Equivalent
0.4062
Finish - Machining
Bright (Uncoated)
Left/Right Hand
Right Hand Cutting
Material - Machining
High Speed Steel
Measurement System
Fractional Inch
Primary Material Application
Steel
Primary Material Application ISO Code
P
Secondary Material Application
Steel
Secondary Material Application ISO Code
P
Shank
Round Shank
Shank Type - Machining
Straight
Spiral Direction
Neutral
Type
Straight Flute
Application
For Aluminum, Alloyed, Stainless And Tool Steels, Cast Iron And Plastic
Primary Material Application
Steel
Chamfer
45 deg.
Primary Material Application ISO Code
P
Cutting Direction - Machining
Right Hand
Secondary Material Application
Steel
Decimal Equivalent
0.4062
Secondary Material Application ISO Code
P
Finish - Machining
Bright (Uncoated)
Shank
Round Shank
Left/Right Hand
Right Hand Cutting
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Spiral Direction
Neutral
Measurement System
Fractional Inch
Type
Straight Flute
Product Description
These high-speed steel chucking reamers come in standard sizes expressed in fractional inches. Fractional inch is the most common trade size used for chucking reamers. Straight-flute reamers push chips forward into a hole as they enlarge it to an exact size for a precise fit when installing fasteners or other parts. They are the most commonly used style of reamer. These chucking reamers are made from high-speed steel and have a bright finish that is unaffected when their cutting edges are resharpened. The reamers' straight shank mounts to the chuck of a drill press or similar machining tool.
Item Barcode
Chucking Reamer,13/32",6 Flutes
