WIDIA GTD

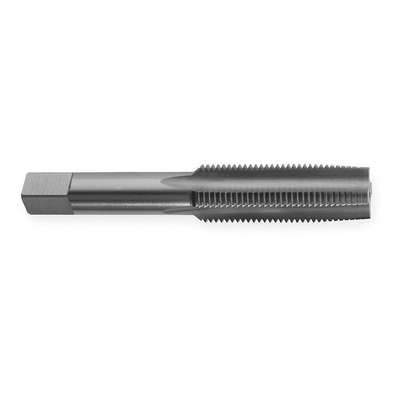

Straight Flute Tap, Thread Size 5/8"-11, UNC, Taper, Overall Length 3 13/16 in

Hover over image to magnify
Straight Flute Tap,5/8"-11,Hss-
Straight Flute Tap,5/8"-11,Hss-

#938381-3 | Pkg Qty: 1

$43.31 pkg | $43.31 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WIDIA GTD
Shank Length
2 in.
Cutting Direction
Right
Shipping Weight
.15 lb.
Cutting Direction
Right Hand
Size
5/8 in.
Dimension Type
Decimal Inch
Spiral Direction
Neutral
Flutes
4
Square Size
0.36 in.
Grade
WU41EG
Subgroup | Tap
Straight Flute
Insert Material
High Speed Steel
Tap Chamfer
Taper
Item
Straight Flute Tap
Tap Dimension Type
Inch
List Number
5303
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
14379
Tap Size
5/8 in.
Number of Flutes
4
Tap Style
Straight Flute (Hand)
Number of Pieces
1
Tap Thread Size
5/8 in.-11
Overall Length
3-13/16 in.
Tap Thread Type
UNC
Pack Quantity
1
Thread Direction
Right Hand
Pitch
11
Thread Length
1-13/16 in.
Pitch Diameter Limits
H3
Thread Size
5/8"-11
Primary Material Application
Steel
Thread Type
UNC
Series
5303
Type
Taper
Shank Diameter
15/32 in.
General
55% Thread Drill Size
14.20 mm
Shank Dia.
15/32 in
65% Thread Drill Size
13.90 mm
Shank Type - Machining
Straight
75% Thread Drill Size
13.60 mm
Standards
DIN 374
Application
For Tapping Under Power Through Shallow or Blind Holes
Tap Grouping
Individual
Class of Fit
2B, 3B
Tap Length Standard
ANSI
Coolant Fed
Non-Coolant Through
Tap Shank Standard
ANSI
Extended Neck
Yes
Thread Limit
H3
Measurement System
Fractional Inch
Thread Limit / Class of Fit
H3 / 2B, 3B
Primary Material Application ISO Code
P
Thread Standard
UNC
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Threads per Inch
11
Secondary Material Application ISO Code
K, M, N

Product Description

The bright finish on these taps provides a smooth, polished surface.
