SQUARE D

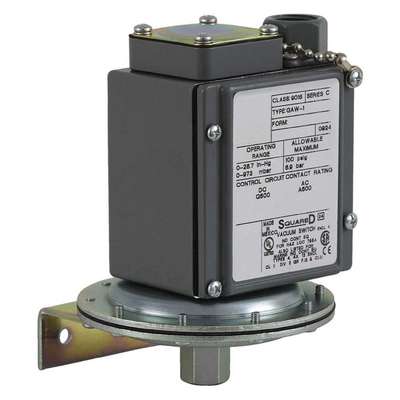

Square D Standard SPDT Vacuum Switch, Differential: 0.8 to 9 in Hg, NEMA Rating: 13, 4, 4X
Hover over image to magnify
#938376-7 | Pkg Qty: 1
$393.12 pkg | $393.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 480 V
Mfr. Part Number
9016GAW1
Action
Standard
NEMA Rating
13, 4, 4X
Actuation Type
Diaphragm
Number of Ports
1
Brand
SQUARE D
Package Quantity
1
Burst Pressure
100 PSI
Phase
Single/Three
Contact Form
SPDT
Port Type
1-Port 1/4-18 in. FNPT
Contact Type
SPDT
Range
0 to 28.7 in. Hg
DC Contact Rating
10A Continuous
Series
9013GAW
Differential
0.8 to 9 in. Hg
Shipping Weight
4.45 lb.
Enclosure
NEMA 4, 4X, 13
Type
GAW
IP Rating
54
General
Ambient Temp. Range
-10° to 185°F
Special Features
Nitrile (Buna-N) Diaphragm, Water Tight, Dust Tight, Oil Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure
Application
Automotive, Complex and Special Machines
Standards
CSA and CE Certified
Includes
Switch Only
Temp. Range
-10° to 185°F
Media Temp. Range
-14° to 250°F
Product Description
This vacuum switch features double-throw contacts for standard- or reverse-action applications. It can be used to control air, water, hydraulic oils, gases, and steam.
Item Barcode
Vacuum Switch,Stndrd/Revers,0
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2FH45 | |
 | UNSPSC CODES | 39122210 | |
 | VMRS (ATA) CODES | 053-006-009 | Vacuum Switch, |
