COXREELS

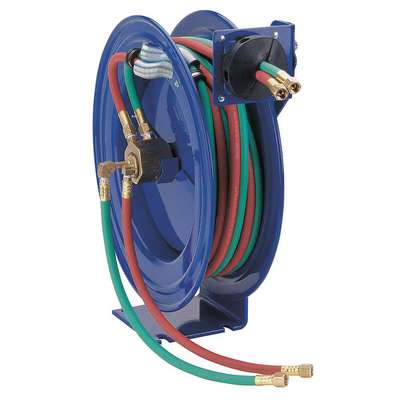

Coxreels Welding Hose Reel, Welding, Hose Grade R, 200 psi, 0 psi, Hose Capacity 50 ft (1/4 in ID)

Hover over image to magnify
Welding Hose Reel,1/4" Id,50
Welding Hose Reel,1/4" Id,50

#938364-1 | Pkg Qty: 1

$690.09 pkg | $690.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Reel Inlet
1/4 in.
Mfr. Part Number
SHW-N-150
Bearings
Permanently Lubricated
Minimum Operating Temperature
-20 deg. F
Brand
COXREELS
Mounting
Bench or Truck, Ceiling, Floor, Wall
Drive Type
Spring Return
Mounting Location
Ceiling, Floor, Truck, Wall
Fitting Size
9/16 in. x 9/16 in.
Overall Dimensions
19-1/2 in. L x 10-1/4 in. W x 21-1/4 in. H
Fitting Type
UNF x UNF
Overall Height
21-1/4 in.
Hose Capacity
50 ft. (1/4 in. ID)
Overall Length
19-1/2 in.
Hose Included
Yes
Overall Width
10-1/4 in.
Hose Inside Diameter
1/4 in.
Package Quantity
1
Hose Length
50 ft.
Reel Color
Blue
Includes Hose
Yes
Reel Diameter
19-1/2 in.
Item
Welding Hose Reel
Reel Material
Steel
Latch
Locking
Reel Width
10-1/4 in.
Latch Type
Locking
Seal Type
Viton
Maximum Operating Temperature
150 deg. F
Shipping Weight
56.2 lb.
Maximum Pressure
200 psi
Thread
9/16 in.-18 UNF
Maximum Temperature
150 deg. F
Welding Hose Grade
R
Meets/Exceeds
R.M.A. and C.G.A. Type V.D. Specifications
General
(F)NPT Reel Inlet (In.)
1/4 in
Hose Reel Primary Application
Welding
Base Motion Type
Stationary
Hose Reel Type
Wall Mount Hose Reel
Bearing Construction
Permanently Lubricated
Hose Return Speed Control
No
Combination Type
Oxygen/Acetylene
Include Hose Stop
Yes
Enclosed
No
Includes Leader Hose
Yes
Fasteners Included
No
Leader Hose Cover Material
EPDM
Features
1 in. Solid Steel Axle, Heavy Gauge Steel Base, Solid One Piece
Leader Hose Fitting A Gender
Male
Fitting Gender
Female x Female
Leader Hose Fitting A Material
Brass
For Dual Hose
Yes
Leader Hose Fitting A Size
1/4 in
For Use With
Oxy-Acetylene
Leader Hose Fitting A Type
NPT
Hose 1 Cover Material
EPDM
Leader Hose Fitting B Gender
Female
Hose 1 Fitting A Gender
Female
Leader Hose Fitting B Material
Brass
Hose 1 Fitting A Material
Brass
Leader Hose Fitting B Size
9/16 in
Hose 1 Fitting A Size
9/16 in
Leader Hose Fitting B Type
UNF
Hose 1 Fitting A Type
UNF
Leader Hose Length
1 1/2 ft
Hose 1 Fitting B Gender
Female
Leader Hose Tube Material
EPDM
Hose 1 Fitting B Material
Brass
Max. Temp.
150°F
Hose 1 Fitting B Size
9/16 in
Maximum Operating Pressure
200 psi
Hose 1 Fitting B Type
UNF
Minimum Operating Pressure
0 psi
Hose 1 Inside Diameter
1/4 in
Mount Base Height
6 in
Hose 1 Length
50 ft
Mount Base Width
6 in
Hose 1 Tube Material
EPDM
Mount Hole Diameter
1/2 in
Hose 2 Cover Material
EPDM
Mounting Hole Center to Center Height
4 in
Hose 2 Fitting A Gender
Female
Mounting Hole Center to Center Width
5 in
Hose 2 Fitting A Material
Brass
Reel Finish
Powder Coated
Hose 2 Fitting A Size
9/16 in
Speed Limited Retraction
No
Hose 2 Fitting A Type
UNF
Spiral Hose Guard
No
Hose 2 Fitting B Gender
Female
Swivel Inlet Gender
Female
Hose 2 Fitting B Material
Brass
Swivel Inlet Size
1/4 in
Hose 2 Fitting B Size
9/16 in
Swivel Inlet Thread Size
1/4 in - 18
Hose 2 Fitting B Type
UNF
Swivel Inlet Type
NPT
Hose 2 Inside Diameter
1/4 in
Swivel Material
Brass
Hose 2 Length
50 ft
Swivel Outlet Gender
Male
Hose 2 Tube Material
EPDM
Swivel Outlet Size
1/4 in
Hose End Configuration
9/16 in F UNF
Swivel Outlet Thread Size
1/4 in - 18
Hose Grade
R
Swivel Outlet Type
NPT
Hose Outlet
1/4 in

Product Description

Standard welding spring-return hose reels have an independent dual-swivel design that allows a positive separation of gases with double sealed O-rings to prevent leaks. The dual-swivels are made from aluminum that's hard-coated for wear resistance, and the swivel body and inlet are permanently identified with machined grooves on the gas side to assure proper installation. Reinforced steel construction includes powder-coated finish for corrosion resistance. These low-pressure (up to 500 psi) reels mount on the floor, wall, ceiling, bench, or on trucks, and include an adjustable guide arm. Reels use Grade R (oxygen and acetylene gas) or Grade T (oxygen and fuels) hoses. Welding spring-return reels are used with oxygen and acetylene welding hoses in service bays, fabrication shops, and on welding carts.
