INSIZE

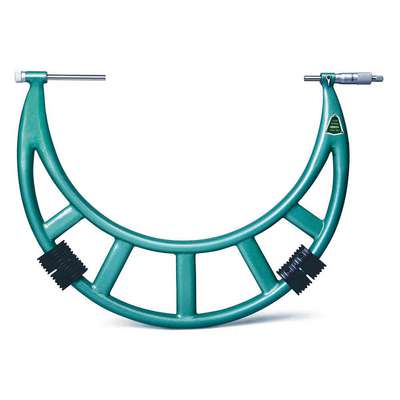

Insize Mechanical Interchangeable-Anvil Outside Micrometer, Operation Type Mechanical

Hover over image to magnify
Outside Micrometer,Ratchet
Outside Micrometer,Ratchet

#938330-9 | Pkg Qty: 1

$820.08 pkg | $820.08 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accuracy
±0.00051 in.
Package Quantity
1
Anvil
Flat, Carbide
Range
16 in. to 20 in.
Anvil Material
Carbide
Resolution
0.001 in.
Anvil Size
0.315 in.
SPC Output
No
Brand
INSIZE
Shipping Weight
17.78 lb.
Dimension Type
Inch
Spindle
Flat
Lock Nut Type
Lock Nut
Spindle Diameter
0.315 in.
Mfr. Part Number
3206-20
Spindle Material
Steel
Operation Type
Mechanical
General
Anvil Shape
Flat
Maximum Measurement - Inch
20 in
Features
Interchangeable Anvils
Minimum Measurement - Inch
16 in
Includes
Setting Standard
Rotating Spindle (Yes/No)
Yes
Long Form Calibration Certificate
No

Product Description

Interchangeable anvil outside micrometers have a standard micrometer C-shaped jaw and stock, but have anvils that can be changed to accommodate a range of applications. These micrometers are commonly used in machine shops, automotive repair shops, and for applications requiring a single micrometer with a range greater than 1”. Similarly, adjustable-collar micrometers are outside micrometers with an extension anvil collar and included setting standards to accomodate variable measuring lengths within a given range larger than a standard outside micrometer.

Item Barcode
9383309
Outside Micrometer,Ratchet
 NameItemDescription
Grainger DropshipGrainger Dropship462U47
UNSPSC CODESUNSPSC CODES41111601
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
