DUAL-LITE

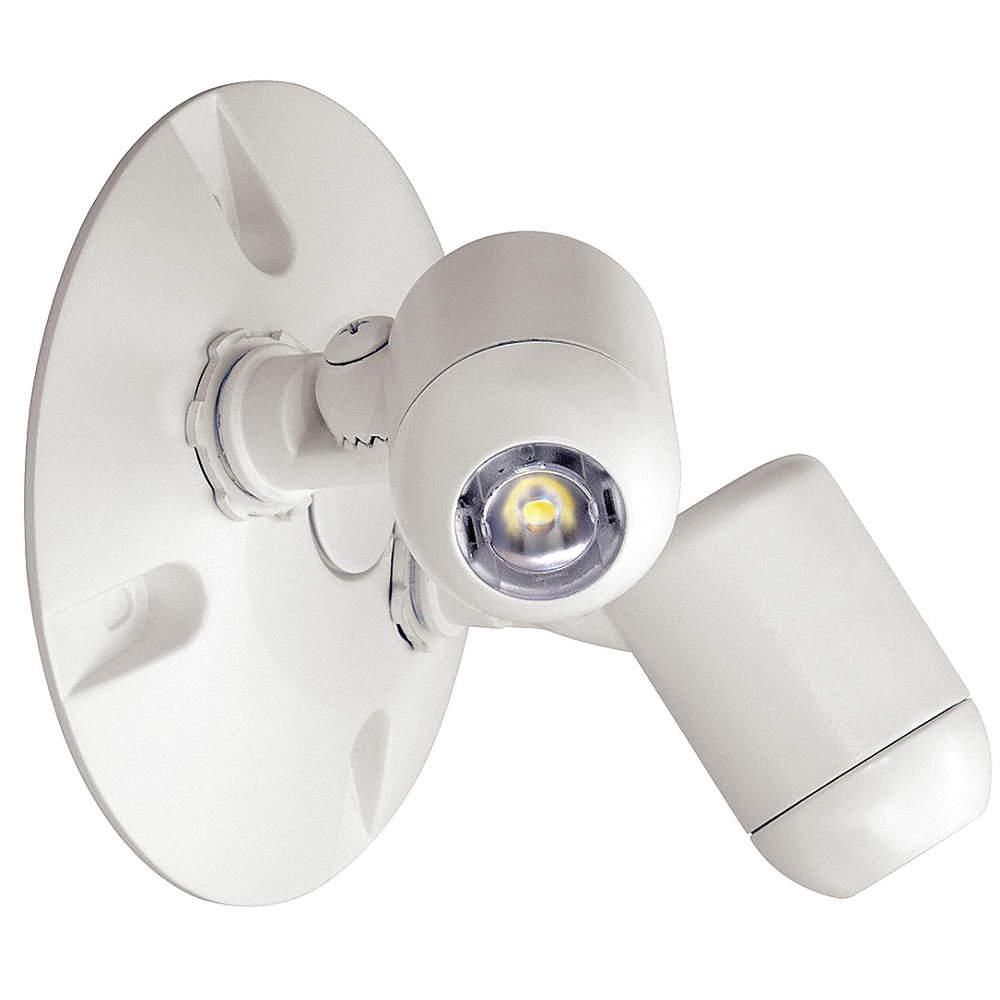

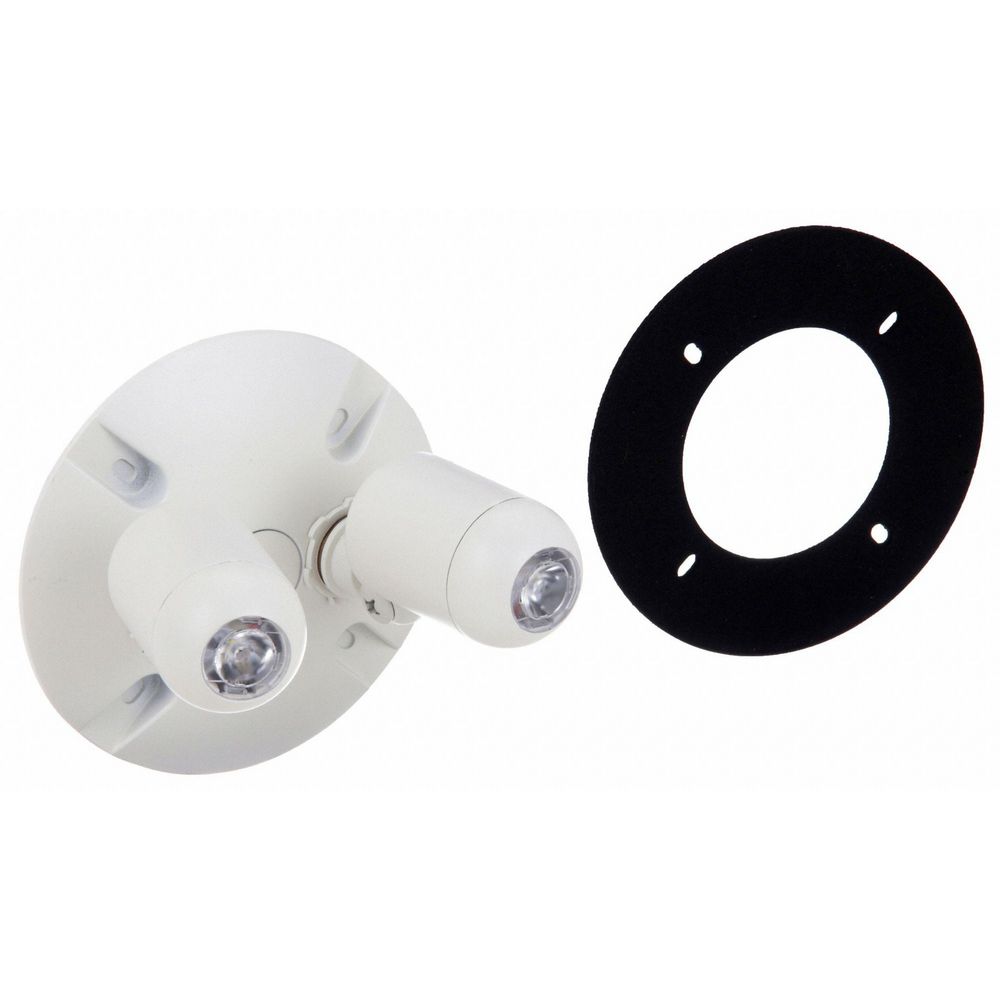

Remote Head: LED, Aluminum, Wall, 2 W Lamp Watt, 2 Lamps, 4.8 V, Adj, White, Wet Location Rated

Hover over image to magnify
Rmt HD,4.8 V Dc,LED,Alum,Wht
Rmt HD,4.8 V Dc,LED,Alum,Wht

#938307-5 | Pkg Qty: 1

$126.92 pkg | $126.92 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adjustable
Yes
Light Technology
LED
Brand
DUAL-LITE
Mfr. Part Number
EVODW
Emergency Illumination Time
90 min.
Mounting
Wall
Height
5 in.
Mounting Location
Wall
Housing Color
White
Mounting Type
Surface
Housing Material
Aluminum
Number of Lamps
2
IP Rating
Not Rated
Output Voltage
3.25 VDC
Input Voltage
DC from E V4
Package Quantity
1
Item
Remote Head
Shipping Weight
.95 lb.
Lamp Type
LED
Voltage
4.8 V
Lamp Watts
1 W
Width
5 in.
Length
5 in.
General
Bulb Replaceable
No
Includes
Manual
Compatible Mfr. Model Number
EV4D, EV4D-02L, EV4DB, EV4DI, EV4DI-02L
Lamp Wattage
2 W
Compatible Part Number
26UX06, 32WU1, 32WU38, 32WU40, 363V52
Recommended Mounting Height
7 1/2 ft
Environmental Rating
Wet Location Rated

Product Description

This LED light provides 90 min. of illumination in the event of an emergency. The outdoor unit gives over the door path of egress light for emergency operation. Features a double head LED remote which accepts DC input from The EV or ECV Combo Emergency Light Series with remote capacity.
