NORD

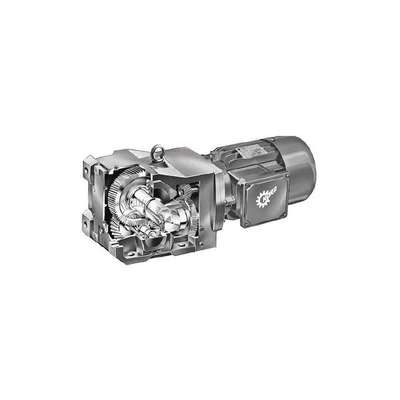

Nord AC Gearmotor: 23 RPM Nameplate RPM, 13,720 in-lb Max. Torque, Single Left, CW/CCW, Horizontal
Hover over image to magnify
#938302-8 | Pkg Qty: 1
$3,289.04 pkg | $3,289.04 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Frame
112
Brake
Optional
Motor Type
3-Phase
Brand
NORD
Mounting
Horizontal
Enclosure
TEFC
Nameplate RPM
23 RPM
Full Load Amps
6-1/2
No Load RPM
23 RPM
Gear Material
Hardened Steel
Package Quantity
1
Gear Ratio
75.9:1
Phase
3
Gear Type
Helical/Bevel
Rotation
Reversible
Gears
Hardened Steel
Seals
Lip
Housing
Cast Iron
Shaft
Solid Input
Hz
60 Hz
Shaft Orientation
Right Angle
Insulation Class
F
Shipping Weight
231 lb.
Length Less Shaft
26-19/64 in.
Thermal Protection
None
Lubrication
Grease Filled
Voltage
230/460
Mfr. Part Number
SK9032.1-112MP/4-75.91-A
General
Application
Power Transmission
Gearmotor Type
AC Gearmotor
Full Load Torque
13720.0 in.-lb.
Gearmotor Voltage
230/460V AC
Gear Case Material
Cast Iron
Input HP
5 hp
Gearmotor Brake Type
None
Keyway Size Type
3/8 in x 3/8 in x 2-3/4 in
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Max. Ambient Temp.
40 °C
Gearmotor Mounting Position
Horizontal
Max. Torque
13,720 in-lb
Gearmotor Phase
3
Overhung Load
1,694 lb
Gearmotor RPM Range
16 to 30
RPM Range
16 to 30
Gearmotor Rotation
CW/CCW
Reversible Shaft Output
No
Gearmotor Shaft Orientation
Right Angle
Standards
CE Certified, CSA Certified, UL Recognized
Gearmotor Shaft Type
Single Left
Product Description
NordBloc™ motors have 20:1 variable torque (VT) and 5:1 constant torque (CT). Unicase™ 1-pc. housing is dimensionally interchangeable with SEW Eurodrive.
- Totally-enclosed fan cooled
- CW/CCW rotation
Item Barcode
Ac Gearmotor,23 Rpm,Tefc,75.91,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 39RK95 | |
 | UNSPSC CODES | 20101617 | |
 | VMRS (ATA) CODES | 053-006-009 |
