New

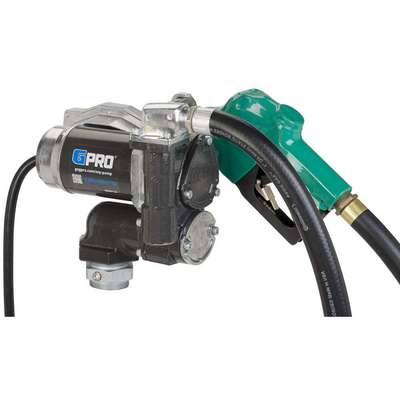

0.41 HP Cast Iron Rotary Vane Fuel Transfer Pump, 25 gpm GPM, 12VDC

Hover over image to magnify
Fuel Transfer Pump
Fuel Transfer Pump

#938277-4 | Pkg Qty: 1

$1,009.09 pkg | $1,009.09 ea

Loading Stock Status...

Item Number 938277-4
Scanner Description Fuel Transfer Pump
Inventory Status Drop Ship Item
Weight 57 lb
Brand GREAT PLAINS INDUSTRIES

Technical Specifications

Amps AC
35
Metered
Yes
Bearing Type
Sealed
Mfr. Part Number
V25-012AD
Brand
GREAT PLAINS INDUSTRIES
Nozzle Material
Aluminum
Bypass Valve
Yes
Nozzle Type
Automatic
Compatible Fluids
Diesel, Gasoline, Kerosene
Outlet Size
1 in. NPT
Duty Cycle
30 min Off, 30 min On, Intermittent
Pack Quantity
1
Features
Easy Access to fuel strainer, Internal Check Valve w/Perfect Prime to keep pump head primped, Lockable Nozzle Holder to deter fuel theft, Multidirectional 90 Degree Outlet, Quick-Fit Modular Design, Safe Stop Power Down - 30 minute auto power down with easy reset
Power Cord Length
18 ft.
For Use With
Diesel up to B20, Gasoline up to E15, Kerosene
Pump Design
Rotary Vane
GPM
25 gpm
Pump Mount Size
2 in.
Hose Length
18 ft.
RPM
1620
Housing Material
Cast Iron
Seal Type
O Ring
Inlet Size
1 in. NPT
Self-Priming
Yes
Manufacturers Warranty Length
4 yr.
Voltage
12 VDC

Product Description

Fuel Transfer Pump, Rotary Vane Pump Design, 0.41 HP, Voltage 12VDC, GPM 25 gpm, Hose Dia. 1 in, Hose Length 18 ft, Suction Tube Length 15 in to 40 in, Metered Yes, Power Cord Length 18 ft, Inlet Size 1 in NPT, Outlet Size 1 in NPT, 35 Amps AC, 1620 RPM, Yes Bypass Valve, Housing Material Cast Iron, Nozzle Material Aluminum, Bearing Type Sealed, Nozzle Type Automatic, Pump Mount Size 2 in, Self-Priming Yes, Duty Cycle 30 min Off, 30 min On, Intermittent, Overall Length 12 11/100 in

Compliance & Restrictions

Prop 65 WARNING: Cancer - www.P65Warnings.ca.gov.
Item Barcode
9382774
  Name Item Description
Grainger Dropship Grainger Dropship 60YR75
UNSPSC CODES UNSPSC CODES 40151532
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009
