MASON
Floor Mount Vibration Isolator: Neoprene, 0 to 525 lb, 0 in to 0.15 in, 2 1/2 in Ht, Green
Hover over image to magnify
#938194-6 | Pkg Qty: 1
$79.21 pkg | $79.21 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MASON

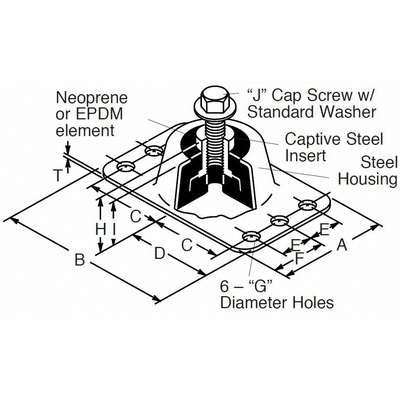

Dimension G
7/16 in.
Color Mark
Green
Dimension H
1-7/8 in.
Deflection
0 in. to 0.15 in.
Dimension J
1/2-13 UNC x 1-1/4 in.
Depth
3 in.
Dimension T
3/32 in.
Dimension A
3 in.
Isolator Type
Neoprene
Dimension B
4.75 in.
Mfr. Part Number
20UZ14
Dimension C
1-15/16 in.
Package Quantity
1
Dimension D
2-3/8 in.
Shipping Weight
1.3 lb.
Dimension E
1 in.
Type
Neoprene
Dimension F
1.5 in.
Width
4-3/4 in.
General
Capacity Range (Lb.)
Up to 525
Dimension I
1 1/2 in
Deflection Range (In.)
Up to 0.15
Max. Load Shear
420
Product Description
High-capacity, low-deflection floor mount designed for earthquake zones features all-direction fail-safe steel housings. Provides high-frequency noise isolation of equipment. Excellent for truck and mobile applications.
