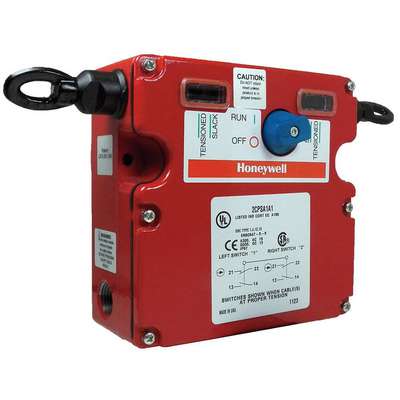

Honeywell Micro Switch Emergency Cable Pull Switch, Maintained, Double End, 0.05A @ 250V AC AC Contact Rating

Name: Honeywell Micro Switch Emergency Cable Pull Switch, Maintained, Double End, 0.05A @ 250V AC AC Contact Rating
Brand: HONEYWELL MICRO SWITCH
SKU: 9381198
Price: 1070.42 USD
Availability: InStock

Hover over image to magnify

#938119-8 | Pkg Qty: 1

$1,070.42 pkg | $1,070.42 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

AC Contact Rating

0.05 A @ 250 VAC

Mechanical Life

1000000

Brand

HONEYWELL MICRO SWITCH

Mfr. Part Number

2CPSA1A1

Cable Connection Location

Left and Right

Mounting Style

Double End

Case Material

Zinc Die Cast

NEMA Rating

1, 12, 13, 4

Contact Form

2NC/2NO, Gold-Plated

Operating Force

3 to 5 lb.

Contact Type

2NC/2NO (Switch 1, Left: 1NC/1NO; Switch 2, Right: 1NC/1NO), Gold-Plated

Operating Position

Double End

DC Contact Rating

2.5A

Pack Quantity

Depth

3.66 in.

Shipping Weight

8.2 lb.

Environmental Protection

IP67

Switch Function

Maintained

IP Rating

Type

Emergency, Maintained Both Sides

Indicator

None

Width

12-3/4 in.

Length

12-3/4 in.

Wiring Entry

1/2 in. NPT

General

For Use With

Microswitch CPS Accessories

Switching Ability

Dual Cable

Reset

Rotary Knob

Thermal Amperage

10 A

Standards

CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in. a Safety Function, EN60947-1, EN-60947-5-1, EN60947-5-5

Product Description

This emergency cable pull switch is designed to provide a readily accessible emergency stop signal.

As an alternative to multiple emergency stop push-buttons, the switch can be used as a means of personnel safeguarding to prevent further injury or damage to equipment when used for emergency stop signaling.

It is also designed to provide emergency stop protection for exposed conveyor and assembly lines. The internal mechanism latches on both slackened cable and pulled cable, which helps to eliminate nuisance stops due to variations in temperature, stretch of cable over time, and other application variables.

Expertly Selected Product Pairings

$147.70 pkg | $147.70 ea

Item: 938931-3 | Pkg Qty: 1

Cable,Plastic Coated Steel,25

Select

Documents

Honeywell Sensing Limit Switches and Machine Safety Guide
