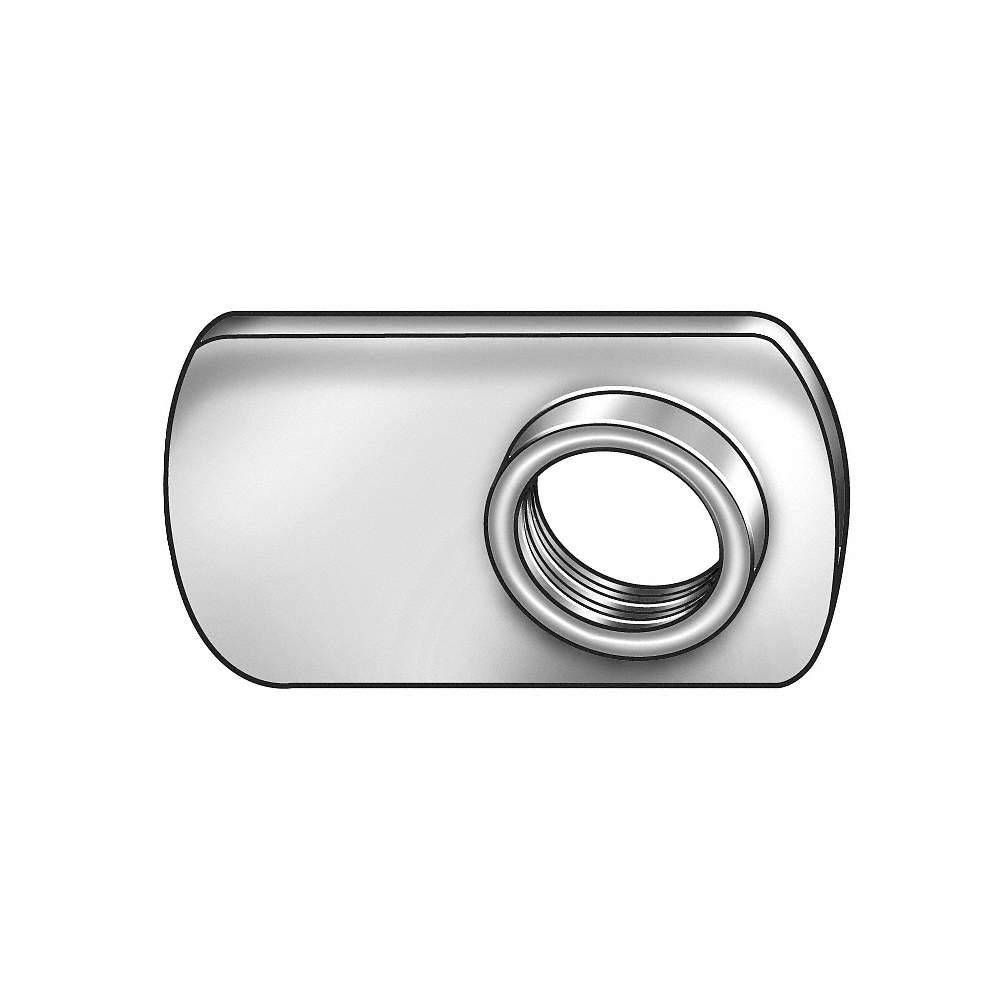

Weld Nut: 5/16"-18 Thread, Tab, 9/64 in Base Ht, 5/8 in Base Wd, 1 1/8 in Base Lg, Plain, 10 PK
Hover over image to magnify
#938107-1 | Pkg Qty: 10
$23.00 pkg | $2.30 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Length
63/64 in.
Material
18-8 Stainless Steel
Base Thickness
9/64 in.
Mfr. Part Number
1LAF1
Base Width
5/8 in.
Nut Style
Tab Base Weld Nut with Offset Hole
Basic Material
Stainless Steel
Pack Quantity
10
Brand
APPROVED SUPPLIER
Pilot Height
0.08 in.
Center of Pilot Hole to Outside Edge
0.281 in.
Pilot Hole Size
3/8 in.
Fastener Finish
Plain
Shipping Weight
.25 lb.
Fastener Thread Direction
Right Hand
Thread Direction
Right Hand
Fastener Thread Type
UNC (Coarse)
Thread Type
UNC
Finish
Plain
Type
Tab Base with Offset Hole
Item
Weld Nut
General
Application
To Be Used With Stainless Steel To Reinforce An Area, Tab Design Allows Welder To Use Multiple Sizes Of Electrodes
For Hole Diameter
3/8 in
Base Shape
Tab
Hole Center to Outside Edge
9/32 in
Collar Diameter
0.359 in
Hole Location
Offset
Collar Height
0.078 in
Product Description
Tab base weld nuts feature an offset hole with a single projection and can be used to reinforce or brace an area.
Item Barcode
Weld Nut,5/16-18,Tab Base,SS,
