Home All Products Pneumatics Hose Reels Motor Driven And Hand Crank Hose Reels SKU: 938103-9
COXREELS

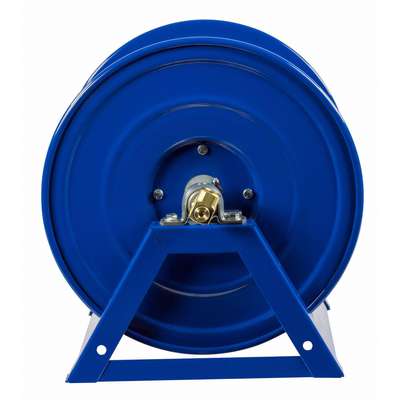

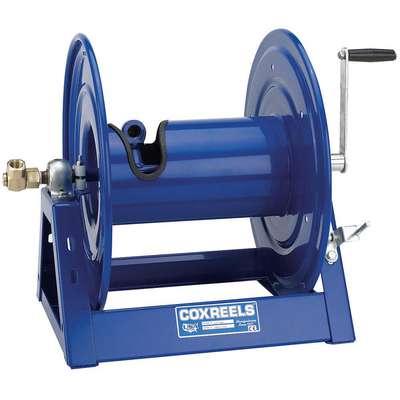

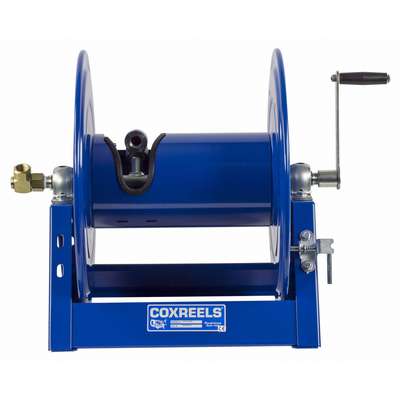

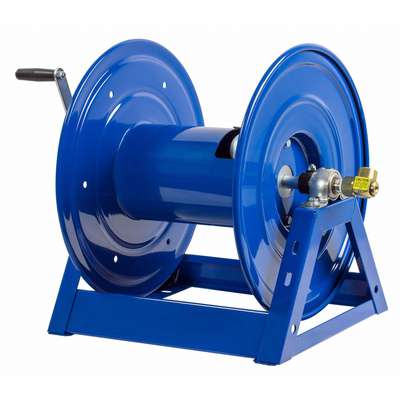

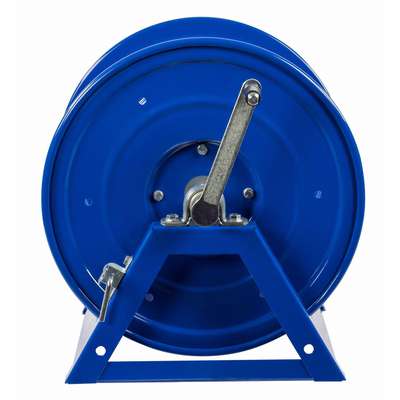

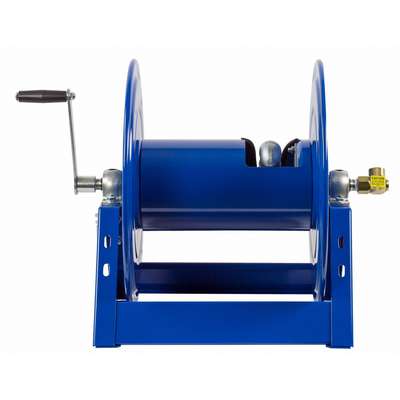

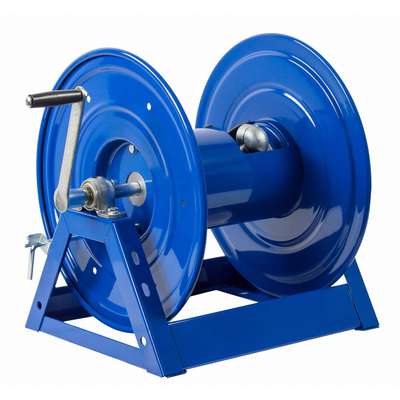

Hand Crank Hose Reel: 100 ft (3/4 in I.D.), 17 5/8 in L x 17 3/8 in W x 18 3/4 in H, Brass

Hover over image to magnify
Hand Crank Hose Reel,100 Ft,3/
PI_Asset_1982071
PI_Asset_1987126
PI_Asset_1990199
PI_Asset_1993180
PI_Asset_1994221
PI_Asset_1995408
PI_Asset_1995409
Hand Crank Hose Reel,100 Ft,3/
PI_Asset_1982071
PI_Asset_1987126
PI_Asset_1990199
PI_Asset_1993180
PI_Asset_1994221
PI_Asset_1995408
PI_Asset_1995409

#938103-9 | Pkg Qty: 1

$648.33 pkg | $648.33 ea

Technical Specifications

Key Specifications
Application
For Lawn Care, Pest Control, Grounds Maintenance, Pressure Washing, Steam Cleaning, Spraying operations, washdown, fire protection, water discharge, can be mounted on stationary and mobile units.
Inlet Size
3/4 in. (F)NPT
Bearings
Permanently Lubricated
Maximum Operating Temperature
250 deg. F
Brand
COXREELS
Maximum Pressure
3000 psi
Color Family
Blue
Minimum Operating Temperature
-40 deg. F
Construction
All Welded Steel A Frame
Mounting Location
Ceiling, Floor, Truck, Wall
Duty Rating
Heavy Duty
Mounting Location Type
Bench, Floor, Truck, Wall
Enclosed
No
Overall Dimensions
17-5/8 in. L x 17-3/8 in. W x 18-3/4 in. H
Features
in.A in. Frame, CNC Spun Disc, Heavy Duty Steel Construction, Outlet Riser
Pack Quantity
1
Finish
Powder Coated
Product Weight
42 lb.
Handle Length
3-1/2 in.
Reel Color
Blue
Hose Capacity
100 ft. (3/4 in I.D.)
Reel Diameter
6-1/4 in.
Hose Ends
3/4 in. (M)NPT
Reel Inlet
3/4 in. (F)NPT
Hose Included
No
Reel Material
Steel
Hose Length
100 ft.
Reel Width
12 in.
Housing Material
Steel
Seal Type
Nitrile
Includes
Locking Pin
Shipping Weight
40 lb.
Includes Gooseneck
Yes
Type
Heavy Duty Air, Water, Oil, Pressure Washer.
Includes Hose
No
Width
26-3/4 in.
General
Base Motion Type
Stationary
Mount Hole Diameter
1/2 in
Bearing Construction
Permanently Lubricated
Mounting Hole Center to Center Height
10 in
Fasteners Included
No
Mounting Hole Center to Center Width
15 3/8 in
For Dual Hose
No
Number of Mount Holes
6
HP
None
Reel Finish
Powder Coated
Hose Inside Dia.
3/4 in
Swivel Inlet Gender
Female
Hose Outlet
3/4 in
Swivel Inlet Size
3/4 in
Hose Outside Dia.
1 1/4 in
Swivel Inlet Thread Size
3/4 in
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Swivel Inlet Type
NPT
Hose Reel Product Group
Hand Crank Hose Reel
Swivel Material
Brass
Hose Reel Type
Wall Mount Hose Reel
Swivel Outlet Gender
Female
Includes Leader Hose
No
Swivel Outlet Size
3/4 in
Max. Pressure Rating
3000 psi
Swivel Outlet Thread Size
3/4 in
Mount Base Height
15 3/8 in
Swivel Outlet Type
NPT
Mount Base Width
17 3/8 in

Product Description

Multipurpose hand-crank reels with gooseneck adapters are built for rugged applications requiring long lengths of hose and larger storage capacity. The longer gooseneck adapter provides more space for physically connecting the hose and helps prevent kinks in thicker hoses during retraction. The open drum design provides smooth, even hose wrapping around drum. A drag brake or tension brake prevents freewheeling or de-spooling during operation, transport, or storage. These steel reels with corrosion-resistant finish mount on the floor, wall, bench, or on a truck. Multipurpose hand-crank hose reels with gooseneck adapters are used with air, water, and chemical hoses for pest and weed control, pressure washing, and in chemical fluid transfer. Consider psi requirements when selecting a hose reel for specific applications.

Documents

Coxreels Cord Reel Features and Benefits
Coxreels Hose Reel Installation Manual
Item Barcode
9381039
Hand Crank Hose Reel,100 Ft,3/
