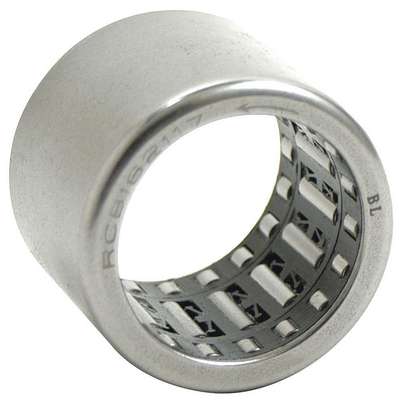

Needle Roller Clutch Bearing: Drawn Cup, 1 in Bore Dia., 25.4 mm Bore Dia., 1.063 in Wd

Hover over image to magnify
Needle Clutch Bearing,Drawn
Needle Clutch Bearing,Drawn

#938096-3 | Pkg Qty: 1

$37.21 pkg | $37.21 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bore Diameter
1 in.
Package Quantity
1
Brand
TRITAN
Shipping Weight
.14 lb.
Item
Needle Roller Clutch Bearing
Type
Drawn Cup
Mfr. Part Number
RCB162117
Width
1.063 in.
General
Bore Dia. (In.)
1 in
Outside Dia. (mm)
33.35 mm
Bore Dia. (mm)
25.4 mm
Static Load Capacity (Lb.)
3,820 lb
Dynamic Load Capacity (Lb.)
3,340 lb
Static Load Capacity (N)
17,000 N
Dynamic Load Capacity (N)
14,850 N
Temp. Range (F)
-5 Degrees to 250 Degrees F
Max. RPM
8,400 RPM
Width (mm)
27 mm

Product Description

Needle Roller Clutch Bearing, Drawn Cup, Bore Dia. (In.) 1 in, Bore Dia. ( mm) 25.4 mm, Outside Dia. (In.) 1.313 in, Outside Dia. ( mm) 33.35 mm, Width (In.) 1.063 in, Width ( mm) 27 mm, Max. RPM 8,400 RPM, Dynamic Load Capacity (Lb.) 3,340 lb, Dynamic Load Capacity (N) 14,850 N, Static Load Capacity (Lb.) 3,820 lb, Static Load Capacity (N) 17,000 N, Temp. Range (F) -5 Degrees to 250 Degrees F, Cage Material Steel

Item Barcode
9380963
Needle Clutch Bearing,Drawn
 NameItemDescription
Grainger DropshipGrainger Dropship35TY24
UNSPSC CODESUNSPSC CODES31171512
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
