INGERSOLL RAND

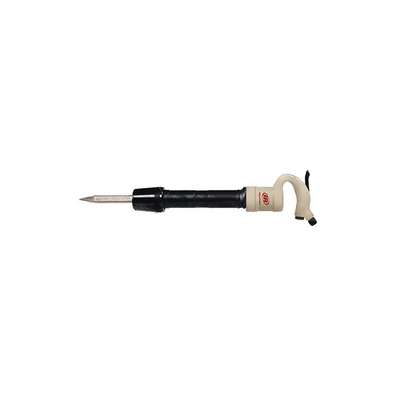

Ingersoll Rand Air Hammer, Heavy Duty, 9 in Stroke Length, 3/8 in NPT Female Air Inlet Size

Hover over image to magnify
Air Hammer,1 5/8 In Stroke L,5,
Air Hammer,1 5/8 In Stroke L,5,

#938086-5 | Pkg Qty: 1

$2,160.28 pkg | $2,160.28 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
40 cfm
Overall Length
22-1/2 in.
Brand
INGERSOLL RAND
Package Quantity
1
CFM @ Full Load
40
Power Source
Air Powered
Duty
Heavy Duty
Required Pressure
90 psi
Handle Type
Swan Neck
Series
9001 Series
Housing Material
Alloy Steel
Shank Size
0.68 in.
Kit Contents
(1) Bare Tool
Shipping Weight
30.8 lb.
Material Application
Concrete
Stroke Length
9 in.
Mfr. Part Number
9001A
Throttle Type
Trigger
Number of Pieces
1
Tool Weight
24-3/4 lb.
General
Air Inlet Connection Size
3/8 in
Features
Case Hardened Alloy Steel Cylinder, Directional Exhaust Deflector, Outside Forged Steel Trigger, Piston Bridge, Steel Throttle Valve, Swan Neck Handle
Air Inlet Gender
Female
Hammer Type
Chipping
Air Inlet Type
NPT
Includes
Grooved Barrel with Lock Spring
Air Pressure
90 psi
Min. Hose Size
1/2 in
Dust Sealed Switch
No
Standards
EN ISO 11148-4, EN ISO 15744, EN ISO 28927-10

Product Description

Chipping hammers use bits with 0.580” or 0.680” round or hex shanks to perform heavy material removal and light demolition tasks. Their long barrel allows a longer stroke length and more driving power than air hammers. They clean off heavy slag and buildup, chip away adhered layers, pry apart fused materials, and break down assembled components. Chipping hammers require two-handed operation to maintain control, with one hand on the barrel and the other on the handle at the back of the tool. They have a switch on the handle for activating the tool.
