Home All Products Pneumatics Compressed Air Treatment Refrigerated Compressed Air Dryers SKU: 938040-7
INGERSOLL RAND

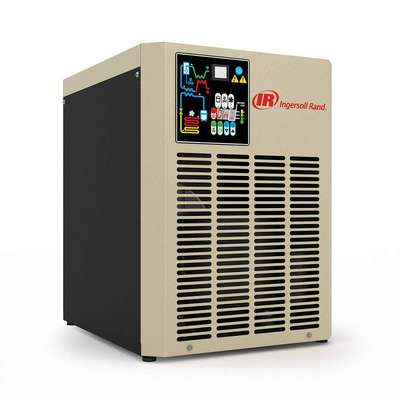

Non Cycling Refrigerated Dryer, Air Cooled, 75 cfm, Max. Air Compressor HP 20 hp

Hover over image to magnify
Non-Cycling Refrigerated Dryer,
Non-Cycling Refrigerated Dryer,

#938040-7 | Pkg Qty: 1

$5,519.32 pkg | $5,519.32 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Key Specifications
Brand
INGERSOLL RAND
Includes
Electronic Condensate Drain, Microprocess Based Controller
Dew Point
50 deg. F
Overall Depth
19-3/4 in.
Features
NEMA 1
Pack Quantity
1
Full Load Amps
8.6 A
Power
0.66 kW
General
Air Inlet Gender
Female
Heat Exchanger Material
Stainless Steel
Air Inlet Type
NPT
ISO Class - Air Treatment
6
Air Outlet Size
3/4 in
Input Voltage - Air Treatment
115V AC
Air Outlet Type
NPT
Max. Flow - Air Treatment
75 cfm
Bracket Kit
No
Max. Incoming Pressure - Air Treatment
200 psig
Bracket Kit Included
No
Maximum Flow @ 100 psi
75 scfm
Connection Size - Air Treatment
3/4 in FTP
Number of Air Inlets
1
Cycling Type
Non-Cycling
Number of Air Outlets
1
Filtered Substance
Oil, Water
Phase - Air Treatment
Single
For Maximum Compressor Output Power
20 hp
Refrigerant
R-134A
Full Load Current
8.6 A

Product Description

Non Cycling Refrigerated Dryer, Air Cooled, Max. Flow - Air Treatment 75 cfm, Max. Air Compressor HP 20 hp, Max. Inlet Temp. - Air Treatment 120 Degrees F, ISO Class - Air Treatment 6, Input Voltage - Air Treatment 115V AC, Phase - Air Treatment Single, Connection Size - Air Treatment 3/4 in FTP, Max. Incoming Pressure - Air Treatment 200 psig, Dew Point 50 Degrees F, 8.6 A Full Load Amps, Power 0.66 kW, Max. Ambient Temp. 113 Degrees F, R-134A Refrigerant, No Bracket Kit

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9380407
Non-Cycling Refrigerated Dryer,
  Name Item Description
Grainger Dropship Grainger Dropship 61DX03
UNSPSC CODES UNSPSC CODES 23201202
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009

For more product information by email, click here
