Cle-Line Reduced Shank Drill Bit, 31/32", 118 °, High Speed Steel, Black Oxide
#937835-9Pkg Qty: 1
$59.08 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLE-LINE
Coolant Through
Non-Coolant Through
Drill Bit Dimension Type
Fractional Inch
Drill Bit Material
High Speed Steel
Drill Bit Point Angle
118 deg.
Drill Bit Size
31/32 in.
Flute Length
3-1/8 in.
Flute Type
Spiral
Helix Angle
28 deg.
Item
Reduced Shank Drill Bit
Mfr. Part Number
C20694
Number of Flutes
2
Overall Length
6 in.
Package Quantity
1
Series
1892
Shank Diameter
1/2 in.
Shank Length
2-1/4 in.
Shank Type
Straight
Shipping Weight
.62 lb.
Brand
CLE-LINE
Mfr. Part Number
C20694
Coolant Through
Non-Coolant Through
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Overall Length
6 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Series
1892
Drill Bit Size
31/32 in.
Shank Diameter
1/2 in.
Flute Length
3-1/8 in.
Shank Length
2-1/4 in.
Flute Type
Spiral
Shank Type
Straight
Helix Angle
28 deg.
Shipping Weight
.62 lb.
Item
Reduced Shank Drill Bit
General
Application
For Alloy And Carbon Steel, Cast Iron And Wood
Cutting Direction
Right
Decimal Equivalent
0.9688
Depth x Diameter Ratio
4xD
Drill Bit Finish
Black Oxide
Drill Bit Grouping
Individual
Drill Bit Point Type
Conventional Point
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Drill Point Length
0.291 in.
Material Grade - Machining
M42
Maximum Drilling Depth
2-1/2 in.
Primary Material Application ISO Code
K, P
Silver & Deming Drill
Yes
Spiral Direction
Right Hand
Application
For Alloy And Carbon Steel, Cast Iron And Wood
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Cutting Direction
Right
Drill Point Length
0.291 in.
Decimal Equivalent
0.9688
Material Grade - Machining
M42
Depth x Diameter Ratio
4xD
Maximum Drilling Depth
2-1/2 in.
Drill Bit Finish
Black Oxide
Primary Material Application ISO Code
K, P
Drill Bit Grouping
Individual
Silver & Deming Drill
Yes
Drill Bit Point Type
Conventional Point
Spiral Direction
Right Hand
Product Description

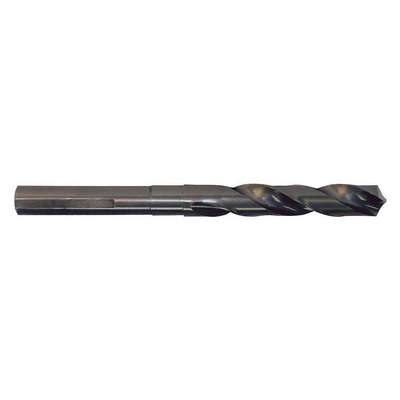

These drill bits have three flats on their shank that help prevent the bits from slipping in the drill chuck when drilling at high speeds or under heavy loads. The bits are made from high-speed steel and provide more flexibility and absorb more shock and vibration than cobalt drill bits. Also known as Silver and Deming drill bits, these reduced-shank drill bits have a 1/2" shank and a drill diameter that is greater than 1/2". They can create larger holes than standard drill bits that have a 1/2" shank.
Item Barcode
Reduced Shank Drill,31/32",Hss
