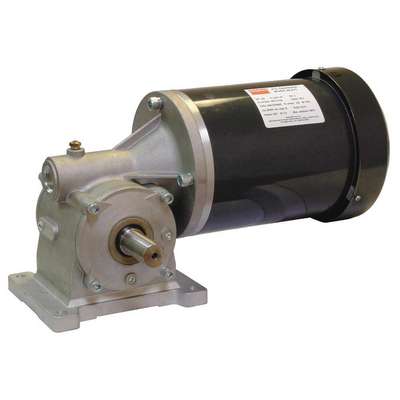

AC Gearmotor: 30 RPM Nameplate RPM, 680 in-lb Max. Torque, Single Left, CW/CCW, All Angle

Hover over image to magnify
Ac Gearmotor,30 Rpm,Tefc,208-

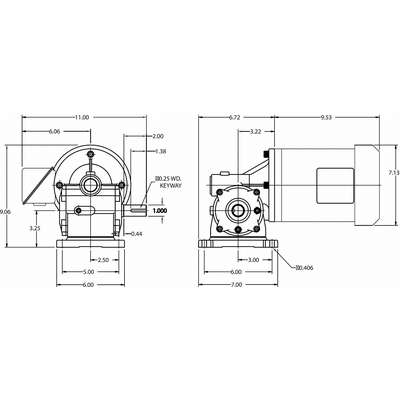

PI_Asset_1983978
Ac Gearmotor,30 Rpm,Tefc,208-
PI_Asset_1983978

#937788-7 | Pkg Qty: 1

$1,164.70 pkg | $1,164.70 ea
Item Number 937788-7
Scanner Description Ac Gearmotor,30 Rpm,Tefc,208-
Inventory Status Drop Ship Item
Weight 41 lb
Brand DAYTON

Technical Specifications

Agency Compliance
UL Recognized, CSA
Housing
Aluminum/Cast Iron
Application
Conveyors, Mixers, Printing Press, Pumps
Hz
60/50 Hz
Bearings
Ball
Insulation Class
F
Brand
DAYTON
Lubrication
Gear Oil
Dimension A
9.53 in.
Motor Frame
56Y
Dimension B
7.13 in.
Motor Type
3-Phase
Dimension C
7 in.
Mounting
All Position
Dimension D
6 in.
Nameplate RPM
30 RPM
Dimension E
3.22 in.
Overall Length
16.25 in.
Dimension F
6.06 in.
Pack Quantity
1
Dimension H
3.25 in.
Phase
3
Dimension L
2.5 in.
Rotation
Reversible
Dimension N
0.44 in.
Seals
Oil Seals on Axle Shaft
Dimension S
1.38 in.
Shaft
Single Output
Enclosure
TEFC
Shaft Orientation
Right Angle
Full Load Amps
2.0-1.9/0.95
Standards
UL Recognized/CSA
Gear Material
Hardened Steel/Forged Bronze
Thermal Protection
None
Gear Type
Worm
Type
Right Angle
Gears
Forged Bronze Output Gear, Hardened Steel Worm
Voltage
208-230/460

Product Description

AC Gearmotor, Gearmotor Voltage 208-230/460V AC, 3 Gearmotor Phase, Max. Torque 680 in-lb, Single Left Gearmotor Shaft Type, Gearmotor Shaft Orientation Right Angle, Gearmotor Rotation CW/CCW, Nameplate RPM 30 RPM, Totally Enclosed Fan-Cooled Gearmotor Enclosure, All Angle Gearmotor Mounting Position, 60/50 Hz Hz, Overhung Load 980 lb, Input HP 1/2 hp, Gear Ratio 58:1, Full Load Amps 2.0-1.9/0.95, Insulation Class F, None Thermal Protection, Motor Type 3-Phase, Aluminum/Cast Iron Housing
