MARATHON MOTORS

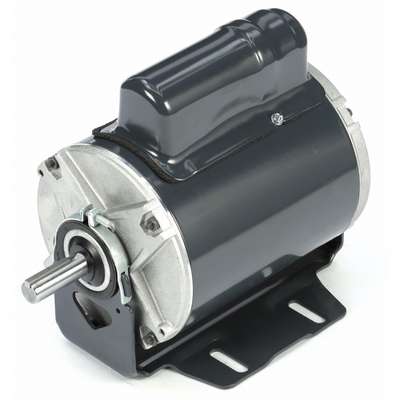

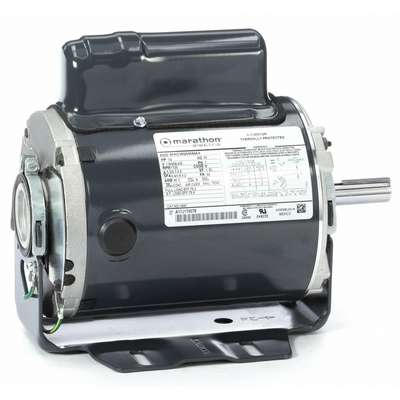

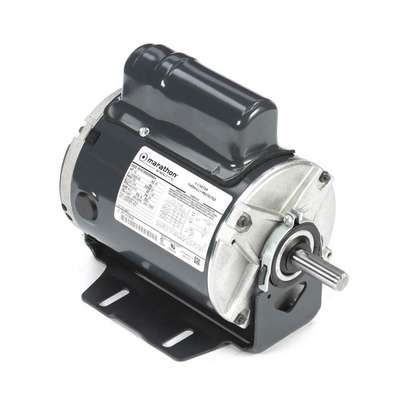

Marathon Motors General Purpose Farm Duty Motor, 1/2 HP, Split-Phase Start/Capacitor-Run, Nameplate RPM 1,725
Hover over image to magnify
#937781-9 | Pkg Qty: 1
$622.21 pkg | $622.21 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Cradle/Stud
Brand
MARATHON MOTORS
Mounting Position
Horizontal
Duty
Continuous
NEMA/IEC Frame
56
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Totally Enclosed Air-Over
Overall Length
10-3/8 in.
Finish
Gray
Package Quantity
1
Frame
56
Phase
Single
Full Load Amps
5.2/2.7-2.6
Rotation
CW/CCW
Hz
60
Service Factor
1.3
Insulation Class
B
Shaft Length
1-7/8 in.
Length Less Shaft
8-1/2 in.
Shaft Type
Keyed
Mfr. Part Number
5KHC39QN9584X
Shipping Weight
19 lb.
Motor Design
Split-Phase Start/Capacitor-Run
Thermal Protection
Auto
Motor Type
Split-Phase
Voltage
115/208-230 VAC
General
Efficiency Group
Standard
Motor Shaft Design
Keyed
HP
1/2
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Sub Application
Direct Drive Fan/Blower
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Auto
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
73.2 %
Motor Efficiency Group
Standard Efficient
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Nonventilated
Shaft Dia.
5/8 in
Motor Frame Material
Steel
Standards
CSA Certified, UL Recognized
Motor Mounting Position
All Angle
Usable @ 200V
No
Motor Mounting Type
Cradle Base
Usable @ 208V
Yes
Motor Service Factor
1.3
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Product Description
Poultry/livestock direct drive farm-duty AC motors require no V-belts or sheaves that can wear out and require maintenance and replacement. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
