HARPER

Harper Convertible Hand Truck, Load Capacity as Hand Truck 300 lb., Load Capacity as Platform Truck 400 lb

Hover over image to magnify
Convertible Hand Truck,400lb,
PI_Asset_1979143
PI_Asset_1987285
PI_Asset_1990322
PI_Asset_1992362
PI_Asset_1993391
Convertible Hand Truck,400lb,
PI_Asset_1979143
PI_Asset_1987285
PI_Asset_1990322
PI_Asset_1992362
PI_Asset_1993391

#937780-7 | Pkg Qty: 1

$102.11 pkg | $102.11 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Key Specifications
Brand
HARPER
Mfr. Part Number
JDC2223
Color Family
Black / Blue
Pack Quantity
1
Features
3-1 Quick Change Convertible
Shipping Weight
22-3/4 lb.
Hand Trucks Group
Convertible Hand Trucks
General
Assembled
Yes
Includes Lever Pushoff
Without Lever Pushoff
Axle Dia.
1/2 in
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel Bearings
Plain
Includes Wheel Fenders
Without Wheel Fenders
Axle-Mounted Wheel Dia.
8 in
Load Capacity as Hand Truck
300 lb
Axle-Mounted Wheel Type
Flat-Free
Load Capacity as Platform Truck
400 lb
Axle-Mounted Wheel Type/Material
Flat-Free Plastic
Non-Marking Axle-Mounted Wheels
No
Axle-Mounted Wheel Width
1 3/4 in
Non-Marking Casters/Wheels
No
Axle-Mounted Wheel/Tread Material
Plastic
Nose Plate Depth
7 1/2 in
Brake Type
No Caster Brake
Nose Plate Material
Steel
Caster Frame Material
Steel
Nose Plate Profile
Standard
Caster Stem Diameter
3/8 in
Nose Plate Thickness
1/8 in
Caster Stem Length
3/4 in
Nose Plate Type
Solid Straight
Caster Wheel Dia.
3 in
Nose Plate Width
14 in
Caster Wheel Width
3/4 in
Nose Plate WxD
14 in x 7 1/2 in
Caster/Wheel Configuration
(2) Swivel, (2) Axle-Mounted
Overall Depth as Hand Truck
16 in
Caster/Wheel Mounting Location
Standard
Overall Height as Hand Truck
45 in
For Surface Type
All Surface Types
Overall HxWxD - Hand Truck
45 in x 18 in x 16 in
Frame Gauge
16 ga
Overall Width as Hand Truck
18 in
Hub Position
Center Mount
Platform LxWxH
34 in x 13 in x 9 in
Includes Foot Assist
Without Foot Assist

Product Description

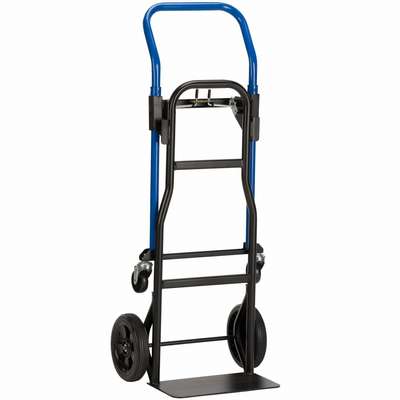

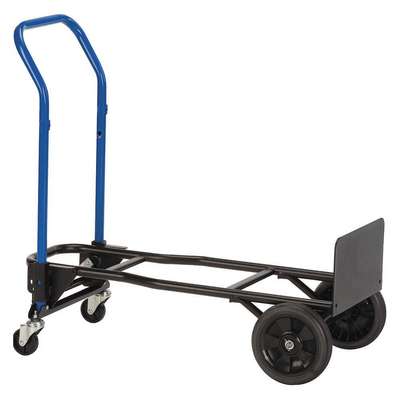

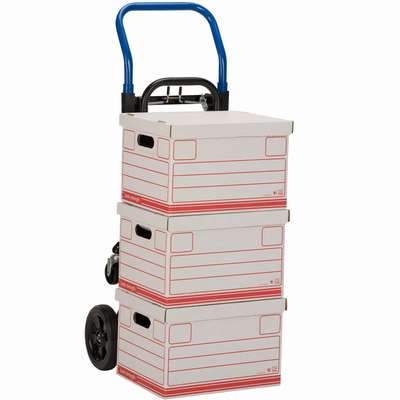

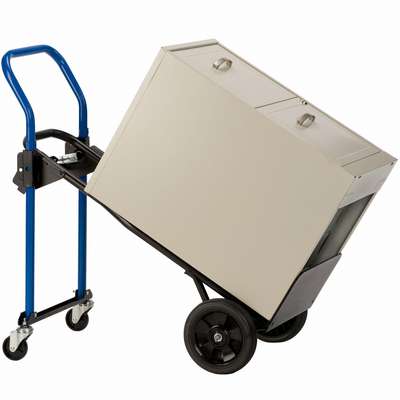

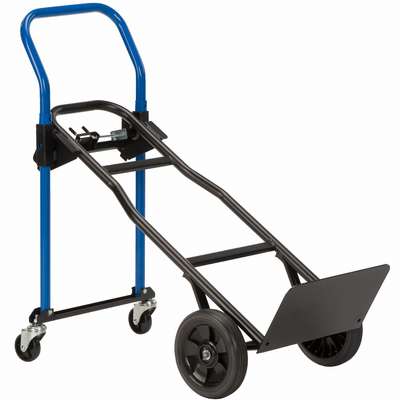

Three-position steel convertible hand trucks can be used as an upright two-wheel hand truck, a horizontal four-wheel platform truck, or a tilt-back four-wheel hand truck. Also known as 3-in-1 hand trucks, the trucks rest on all four wheels in the tilt-back configuration, which reduces the physical effort it takes to keep them upright when moving heavy loads. This configuration also lets operators open doors and perform other tasks with their hands without having to support the hand trucks or return them to vertical and then re-tilt them again. These hand trucks have a steel frame and nose plate.

Item Barcode
9377807
Convertible Hand Truck,400lb,
  Name Item Description
Grainger Dropship Grainger Dropship 149CX2
UNSPSC CODES UNSPSC CODES 24101504
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009
