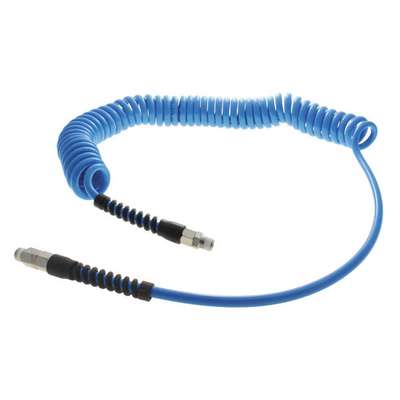

Coiled Air Hose Assembly, Polyurethane, 140 psi, 1/4", 12 ft, Light Blue

Hover over image to magnify
Coiled Air Hose,1/4" Id x 12
Coiled Air Hose,1/4" Id x 12

#937634-7 | Pkg Qty: 1

$42.80 pkg | $42.80 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
ATP
Shipping Weight
.67 lb.
Mfr. Part Number
TT-14-15-LB-RS
Subgroup | Pneumatic Hose
Coiled Air Hose Assembly
Package Quantity
1
General
Compatible Chemicals
Air, Fresh Water
Hose Inside Dia.
1/4 in
Compressed Length
2 ft 12 in
Hose Outside Dia.
3/8 in
For Media Type
Air, Water
Hose Reinforcement Material
Not Reinforced
Hose Configuration
Coupled Assembly
Hose Reinforcement Type
Not Reinforced
Hose Cover Material
Polyurethane
Hose Strain Relief
Yes
Hose Fitting A Material
Brass
Hose Tube Material
Polyurethane
Hose Fitting A Type
MNPT
Max. Working Pressure @ 70 F
140 psi
Hose Fitting B Material
Brass
Pigtail Length
20 in
Hose Fitting B Type
MNPT
Safety Factor
3:1
Hose Fittings
Brass 1/4 in MNPT x Brass 1/4 in MNPT

Product Description

These coiled air hose assemblies have a polyurethane tube and a polyurethane cover that resist becoming brittle with age and maintain excellent flexibility when exposed to low temperatures and cold weather. These hoses are more flexible and have better recoil memory than coiled air hose assemblies with a nylon tube and nylon cover. They are also lightweight, which minimizes the effort it takes to lift and move the hoses. The hoses have bend restrictors on their ends that help prevent kinking. These coiled air hose assemblies are used to carry compressed air to pneumatic tools and equipment in industrial environments.

Coiled air hose assemblies are lengths of hose that are shaped like a spring. The coils of the hose retract when it is not in use to keep the hose out of the way, save space, and prevent it from dragging on the ground. Coiled hose assemblies are used in applications where the hose will be connected to overhead equipment. Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to the tools and equipment.
