HUBBELL WIRING DEVICE-KELLEMS

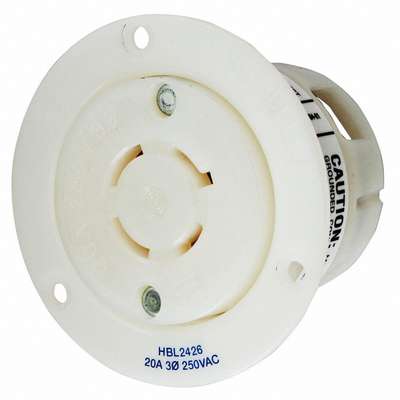

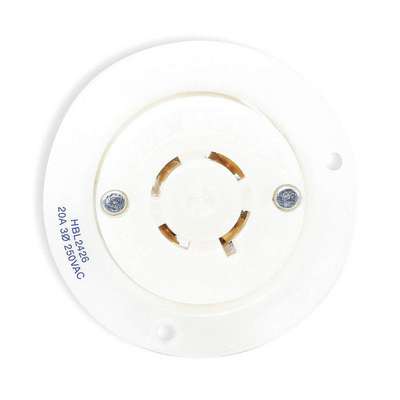

Hubbell Wiring Device-Kellems White Flanged Locking Receptacle, 20 Amps, 250V AC Voltage, NEMA Configuration: L15-20R
Hover over image to magnify
#937565-5 | Pkg Qty: 1
$76.97 pkg | $76.97 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AFCI
No
Maximum Wire Size
8 AWG
Accessory Group
E
Mfr. Part Number
HBL2426
Amperage
20 A
Minimum Operating Temperature
-40 °C
Amps
20 A
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mount Type
Flush
Color Family
White
Mounting Type
Flush Mount
Connection Orientation
Straight
NEMA Configuration - Plugs & Connectors
L15-20
Cover Type
No Cover
NEMA Enclosure Rating
1
Current Rating
20 A
NEMA Rating
12, 4X
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
NEMA Receptacle Configuration
L15-20R
Flange Shape
Round
Number of Gangs
1
Flange Type
Flanged
Number of Poles
3
For Environment
Dry
Number of Wires
4
For Location
Indoor
Package Quantity
1
Grade
Industrial
Phase
Three
Grounding
Grounded
Plate Code
E
HP
3 HP
Polarized
Yes
Horsepower
3 hp
Shipping Weight
.35 lb.
Housing Color
White
Shrouded
No
Housing Material
Nylon
Special Features
With Cover
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Includes
Mounting Screws
Subcategory
Flanged Receptacles
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
HB
Item
Flanged Locking Receptacle
Voltage
250V AC
Material
Thermoplastic Elastomer
Voltage Rating
250V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
HP
3.0
Special Features
With Cover
Product Description
NEMA Twist-Lock® Devices Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Flanged Locking Receptacle,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D049 | |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-006-009 |
