TB WOOD'S

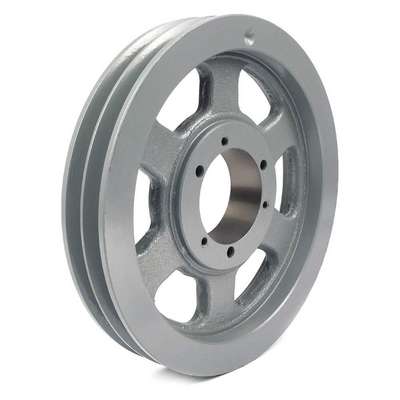

Tb Wood'S Standard V-Belt Pulley: 2 Grooves, 14" Pulley Outside Dia., Cast Iron, Standard V-Belt Pulley
Hover over image to magnify
#937564-7 | Pkg Qty: 1
$412.11 pkg | $412.11 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
TB WOOD'S
Package Quantity
1
Mfr. Part Number
5V1402
Shipping Weight
23.15 lb.
General
5V Belt Pitch Dia. (In.)
14
Length through Bore
2 in
5V Pitch Diameter
14 in
Material Fabrication
Cast
5V or 5VX Belt Pitch Dia.
14.00 in
Maximum Bore Diameter
2 15/16 in
5VX Pitch Diameter
14 in
Minimum Bore Diameter
1/2 in
Bore Type
Bushed
Number of Grooves
2
Bushing Required
SF
Outside Dia.
14.00"
Face Diameter
14 in
Outside Dia. (In.)
14
Face Width
1.69 in
Pitch Diameter
14 in
Fits Shaft Dia.
1/2 in to 2-15/16 in
Pitch Diameter for V-Belt Section
5V: 14 in
For Belt Family
Cogged Wedge, Wedge
Pulley Bore Type
Quick Detachable Bushed Bore
For Belt Trade Size
5V, 5VX
Pulley Construction
Arm
For Bushing Size
SF
Pulley Material
Cast Iron
For Bushing Type
Quick Detachable
Pulley Outside Dia.
14 in
For V-Belt Section
5V, 5VX
Pulley Type
Standard V-Belt Pulley
For V-Belt Type
Banded, Cogged, Wedge
Set Screw Included
No
Groove
2
Product Description
TB Wood’s ultra V-belt pulley uses single or banded V-belts with either wrapped or cogged construction. This narrow-wedge pulley is designed for use with V-belt sections 3V and 3VX.
- Number of grooves: 2
- Quick-detachable bushed bore
- Fine-grain, high-tensile cast-iron construction
- Requires bushings, sold separately
Expertly Selected Product Pairings
Documents
Item Barcode
V-Belt Pulley,Detachable,
