#937464-7 | Pkg Qty: 1
$1,715.20 pkg
| $1,715.20 ea
This item requires special shipping, additional charges may apply.
Technical Specifications
Key Specifications
Application
Power Transmission
Motor Frame
100
Bearings
Ball
Motor Type
3-Phase
Brake
Optional
Mounting
Horizontal
Brand
NORD
Nameplate RPM
130 RPM
Enclosure
TEFC
No Load RPM
130 RPM
Full Load Amps
3.84
Pack Quantity
1
Gear Material
Hardened Steel
Phase
3
Gear Ratio
13.6:1
Rotation
Reversible
Gear Type
Helical/In-line
Seals
Lip
Gears
Hardened Steel
Shaft
Solid input
Housing
Die Cast Aluminum Alloy
Shaft Orientation
Inline
Hz
60 Hz
Shipping Weight
100 lb.
Insulation Class
F
Standards
CE Certified, CSA Certified, UL Recognized
Length Less Shaft
20-49/64 in.
Thermal Protection
None
Lubrication
Grease Filled
Voltage
230/460
Mfr. Part Number
SK572.1-100LP/4, 13.67
General
Application
Power Transmission
Gearmotor Type
AC Gearmotor
Full Load Torque
3629.0 in.-lb.
Gearmotor Voltage
230/460V AC
Gear Case Material
Die Cast Aluminum Alloy
Input HP
3 hp
Gearmotor Brake Type
None
Keyway Size Type
5/16 in x 5/32 in x 2-1/8 in
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Max. Ambient Temp.
40 °C
Gearmotor Mounting Position
Horizontal
Max. Torque
3,629 in-lb
Gearmotor Phase
3
Number of Brake Discs Required
0
Gearmotor RPM Range
101 to 150
Overhung Load
1,796 lb
Gearmotor Rotation
CW/CCW
RPM Range
101 to 150
Gearmotor Shaft Orientation
Inline
Reversible Shaft Output
No
Gearmotor Shaft Type
Single

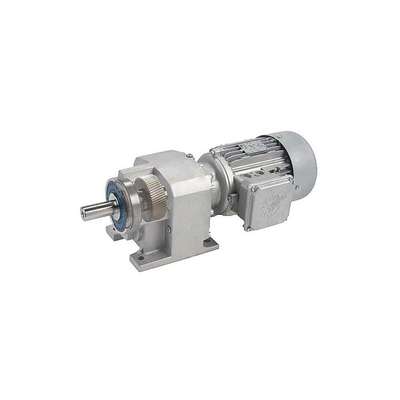

Product Description
NordBloc™ motors have 20:1 variable torque (VT) and 5:1 constant torque (CT). Unicase™ 1-pc. housing is dimensionally interchangeable with SEW Eurodrive.
- Totally-enclosed fan cooled
- CW/CCW rotation
Documents
Item Barcode
Ac Gearmotor,130 Rpm,Tefc,13.
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 39RK90 | |
|
UNSPSC CODES | 20101617 | |
|
VMRS (ATA) CODES | 053-006-009 | AC Gearmotor, 130 rpm,TEFC, |
