DAYTON

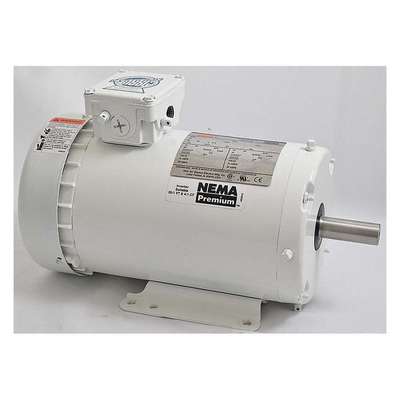

Dayton Washdown Motor, 2 HP, 3-Phase, Nameplate RPM 1,750, Voltage 230/460V AC, 145T Frame

Hover over image to magnify

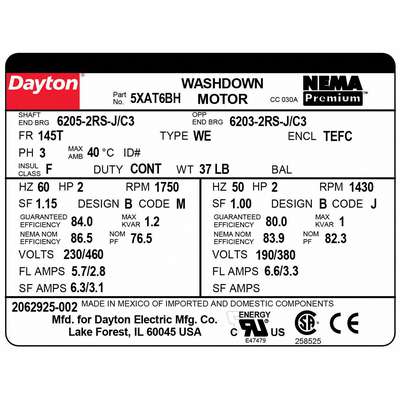

Washdown Motor,2 Hp,1750,145T,
PI_Asset_1766817
Washdown Motor,2 Hp,1750,145T,
PI_Asset_1766817

#937291-7 | Pkg Qty: 1

$1,531.75 pkg | $1,531.75 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Ball
Mounting
Base
Brand
DAYTON
NEMA/IEC Frame
145T
Duty
Continuous
Nameplate RPM
1750
Duty Cycle
Continuous
Overall Length
14-5/16 in.
Enclosure
Totally Enclosed Fan-Cooled
Pack Quantity
1
Footnotes
3, & ? (Inverter Duty, meets NEMA MG1 Part 31, 20:1 Variable Torque and 4:1 Constant Torque)
Phase
Three
Frame
145T
Rotation
CW/CCW
Full Load Amps
5.7/2.8
Service Factor
1.15
Hz
60/50
Shaft Length
2-1/4 in.
Insulation Class
F
Shaft Material
303 Stainless Steel
Length Less Shaft
12 in.
Shipping Weight
26 lb.
Mfr. Part Number
5XAT6
Thermal Protection
None
Motor Design
3-Phase
Voltage
230/460 VAC
Motor Type
3-Phase
General
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Efficiency Group
NEMA Premium Efficient
Body Dia.
6.9 in
Motor Enclosure Design
Totally Enclosed Fan-Cooled
CC Number
CC030A
Motor Frame Material
Epoxy Coated Rolled Steel
Complies With
NEMA MG1-1.26.6
Motor Mounting Position
Horizontal
Conduit Box
Cast Oversized Gasketed
Motor Mounting Type
Rigid Base
Drain Plugs
(4) Each End, (2) In Conduit Box
Motor Service Factor
1.15
Endshield Material
Cast Aluminum
Motor Shaft Design
Keyed
Endshields
Cast Aluminum
Motor Shaft Rotation
CW/CCW
HP
2
Motor Thermal Protection
None
Includes
Top Mounted Conduit Box
NEMA Design
B
Ins. Class
F
Nominal Efficiency
86.5 %
Inverter Rated
Yes
RPM Range
1,701-1,800
Max. Ambient Temp.
40 °C
Shaft Dia.
7/8 in
Motor Application
Washdown
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

Painted epoxy-coated washdown AC motors have a white epoxy finish that is USDA approved and is resistant to caustic cleaning solutions.
