THUEMLING

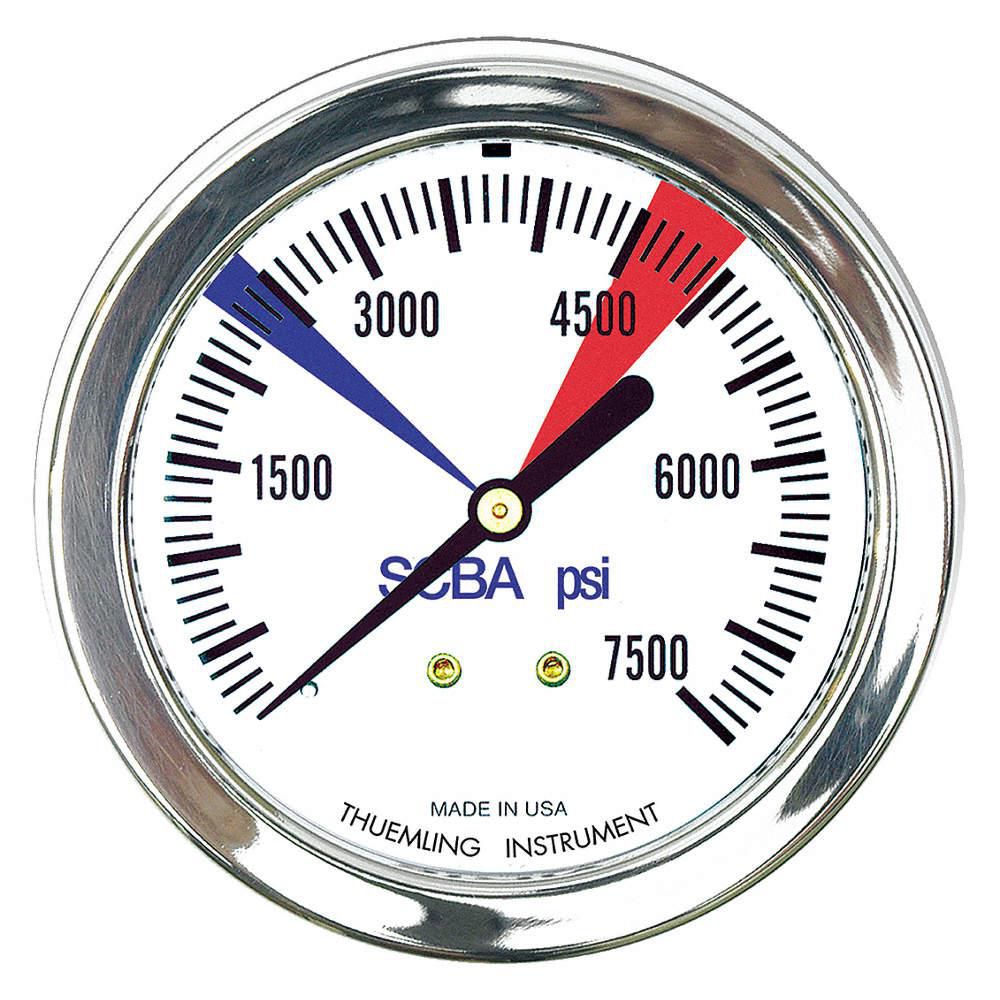

Pressure Gauge, 0 to 7500 psi Range, 1/4" MNPT, +/-1.50% Gauge Accuracy

Hover over image to magnify
Pressure Gauge,0 To 7500 PSI,2-
Pressure Gauge,0 To 7500 PSI,2-

#937288-1 | Pkg Qty: 1

$120.26 pkg | $120.26 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bezel Material
Chrome Plated Nylon
Gauge Primary Range Units
psi
Brand
THUEMLING
Gauge Sensor Material
Phosphor Bronze
Calibration Certificate Included
No
Gauge Socket Material
Brass
Gauge Accuracy
±1.00%
Gauge Type
Industrial Pressure Gauge
Gauge Application
Breathing Air Compressor
Item
Panel-Mount Pressure Gauge
Gauge Case Color
Black
Liquid Filled
Yes
Gauge Case Material
Zytel Nylon
Mfr. Part Number
LFP-SCBA-7500-color zone
Gauge Connection Location
Center Back
Mounting Type
U-Clamp
Gauge Connection Size
1/4 in.
Non-Sparking
No
Gauge Connection Type
MNPT
Operating Temperature Range
-40 deg. F to 150 deg. F
Gauge Filled With
Glycerin
Package Quantity
1
Gauge Lens Material
Acrylic
Pressure Range
0 to 7500
Gauge Nominal Dial Size
2-1/2 in.
Series
SCBA
Gauge Panel Mountable
Yes
Shipping Weight
.65 lb.
Gauge Primary Range Smallest Graduation
100
General
Accuracy Grade
ASME B40.100 Grade 1A
Liquid-Filled Case
Yes
Accuracy Scale
Full Scale
Manufacturer Warranty Length
1 yr
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Mounting Hardware Included
2 Piece Bracket, U-Clamp
Bezel Gasket Material
EPDM
Nominal Dial Size
2 1/2 in
Blowout Safety Back
No
Panel-Mountable
Yes
Bolt Circle Diameter
2.15 in
Pointer Color
Black
Brand and Series
THUEMLING SCBA
Pointer Material
Aluminum
Case Construction
Corrosion Resistant
Pressure Gauge Type
Industrial Pressure Gauge
Case Depth
1.33 in
Pressure Range Type
Pressure
Case Diameter
3.23 in
Primary Pressure Range
0 to 7,500
Cleaned for Oxygen Service
No
Primary Scale Minor Graduations
100
Dial Color
White with Color Zones
Primary Scale Units
psi
Dial Face Material
Aluminum
Process Connection
1/4 in NPT Male
Freeze Resistant Movement
No
Process Connection Gender
Male
Gauge Accuracy Grade
Grade 1A - Industrial
Process Connection Location
Center Back
Gauge Case Liquid
Glycerin
Process Connection Size
1/4 in
Gauge Mounting Type
U-Clamp
Process Connection Type
NPT
Gauge Wetted Parts
Brass / Bronze
Removable Bezel
No
Includes Calibration Certificate
No
Scale Type
Single
Includes Mounting Hardware
Yes
Sensor Material
Phosphor Bronze
Includes Vent Plug
No
Sensor Type
Bourdon Tube
Lens Material - Gauge
Plastic
Socket Material
Brass

Product Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 1/2, Accuracy +/-1.0 Percent, Gauge Case Material Zytel Nylon, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 7, 500, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White with Color Zones
