LEESON

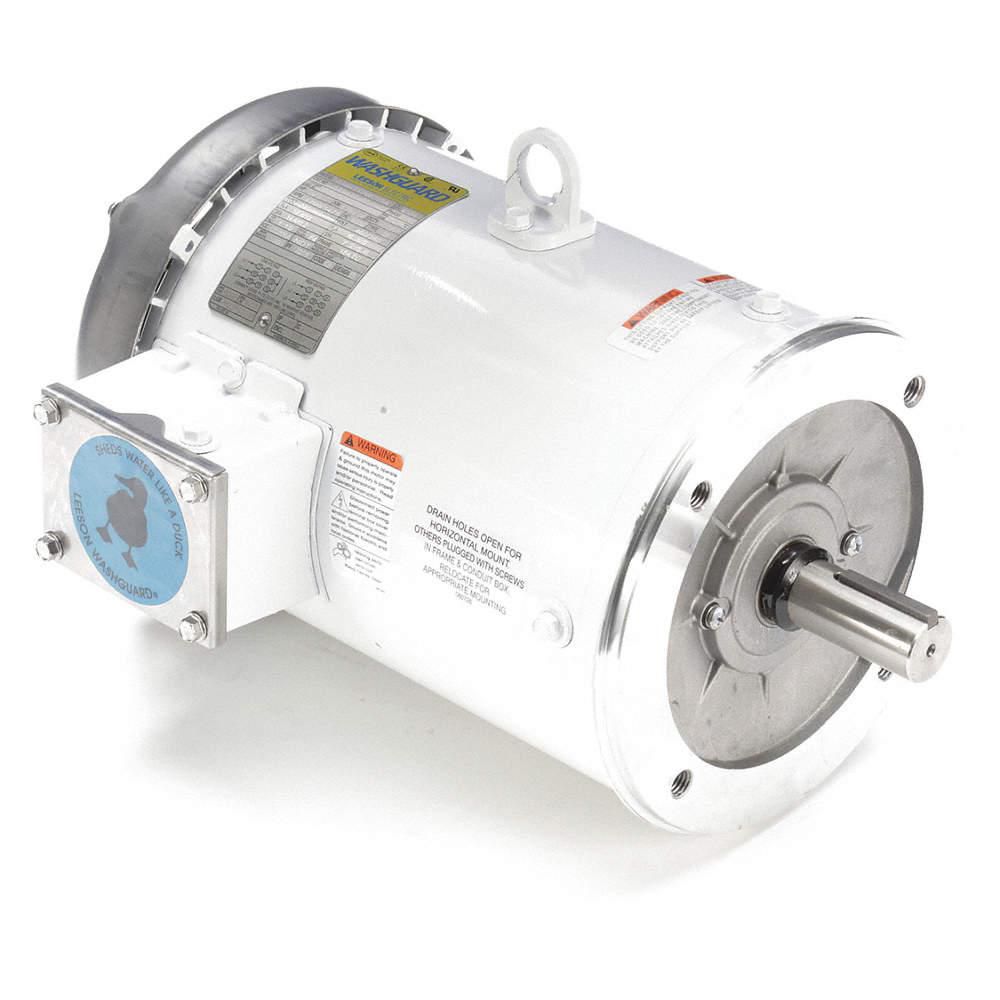

Leeson Washdown Brake Motor, 5 HP, Painted Finish, 3-Phase, Nameplate RPM 1,760, Voltage 230/460V AC
Hover over image to magnify
#937238-4 | Pkg Qty: 1
$2,063.49 pkg | $2,063.49 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LEESON
Motor Design
3-Phase
Duty Cycle
Continuous
Nameplate RPM
1760
Finish
Painted
Overall Length
15-1/2 in.
Frame
184TC
Package Quantity
1
Full Load Amps
12.6/6.3
Phase
Three
Hz
60
Shaft Length
2-3/4 in.
Length Less Shaft
12-13/16 in.
Shipping Weight
87 lb.
Mfr. Part Number
132440
Voltage
230/460 VAC
Mfr. Warranty Length
1 yr.
General
Application
General Purpose
Motor Mounting Position
Horizontal
Body Dia.
8.4 in
Motor Mounting Type
Face
Bolt Circle Dia.
7 1/4 in
Motor Service Factor
1.15
CC Number
CC005A
Motor Shaft Rotation
CWSE
Green Certification or Other Recognition
NEMA Premium® Rated
Motor Thermal Protection
None
HP
5
NEMA Design
B
Ins. Class
F
No. of Speeds
1
Max. Ambient Temp.
40 °C
Nominal Efficiency
89.5 %
Motor Application
Washdown
RPM Range
1,701-1,800
Motor Bearings
Ball
Shaft Dia.
1 1/8 in
Motor Efficiency Group
NEMA Premium Efficient
Standards
BISSC, CE, CSA, UL
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Frame Material
Steel
Product Description
Painted epoxy-coated washdown AC motors have a white epoxy finish that is USDA approved and is resistant to caustic cleaning solutions.
Expertly Selected Product Pairings
Documents
Item Barcode
Brake Motor,5 Hp,1760,184TC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48ZG38 | |
 | UNSPSC CODES | 26101115 | |
 | VMRS (ATA) CODES | 053-006-009 |
