OMRON

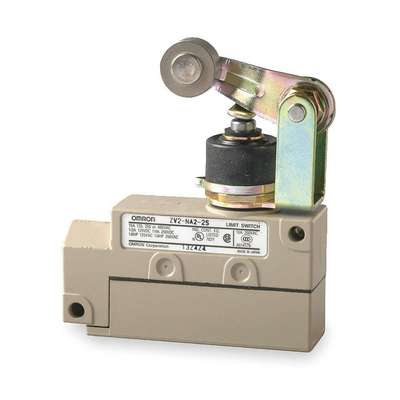

Omron Plunger, Roller Lever General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Top Movement
Hover over image to magnify
#937114-3 | Pkg Qty: 1
$133.31 pkg | $133.31 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator Length
1.56 in.
Movement
Top
Actuator Location
Top
NEMA Rating
1, 2, 3, 4, 5
Actuator Style
Horizontal Roller Lever, Boot Sealed
Operating Force
6.3 N-m
Amperage
15/15/10 A
Package Quantity
1
Arm Width
0.63 in.
Roller Width
0.31 in.
Body Material
Aluminum
Series
ZV2
Brand
OMRON
Shipping Weight
.6 lb.
Contact Form
SPDT
Style
Sealed Lever Arm
Depth
3.39 in.
Travel
Maximum Pre-Travel 5mm, Minimum Over-Travel 6mm
Electrical Connection
Screw Terminals
Type
Diagonal Mount
Hazardous Location
No
Voltage
480 VAC
Height
4.02 in.
Voltage Rating
480 VAC
IP Rating
65
Width
1 in.
Limit Switch Style
General Purpose Limit Switch
Wiring Entry
G1/2
Mfr. Part Number
ZV2NA22S
General
AC Contact Rating - Limit Switch
10A @ 480V
Contact Form- Switches
SPDT
Actuator Length - Limit Switch
1.56 in
DC Contact Rating - Limit Switch
Not Rated
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Bottom Flange
Actuator Style - Limit Switch
Plunger, Roller Lever
Mounting Hole - Limit Switch
(2) 0.17 in dia
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Depth - Limit Switch
1 in
Mounting Hole Spacing - Limit Switch
1.63 in
Body Height - Limit Switch
1.3 in
Operating Temp. Range
14° to 176°F
Body Style - Limit Switch
Micro
Standards
CSA, UL
Body Width - Limit Switch
3.39 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
Yes
Threaded for Panel Mounting - Limit Switch
No
Product Description
This general purpose, enclosed limit switch is engineered to offer both high breaking capacity and high durability.
Item Barcode
Enclosed Limit Switch
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2CMC1 | |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 |
