GE

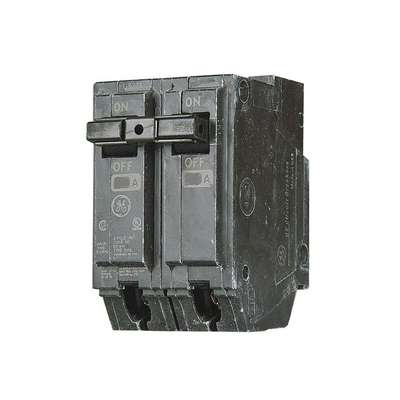

GE Miniature Circuit Breaker, Amps 30 A, Circuit Breaker Type High Intensity Discharge

Hover over image to magnify

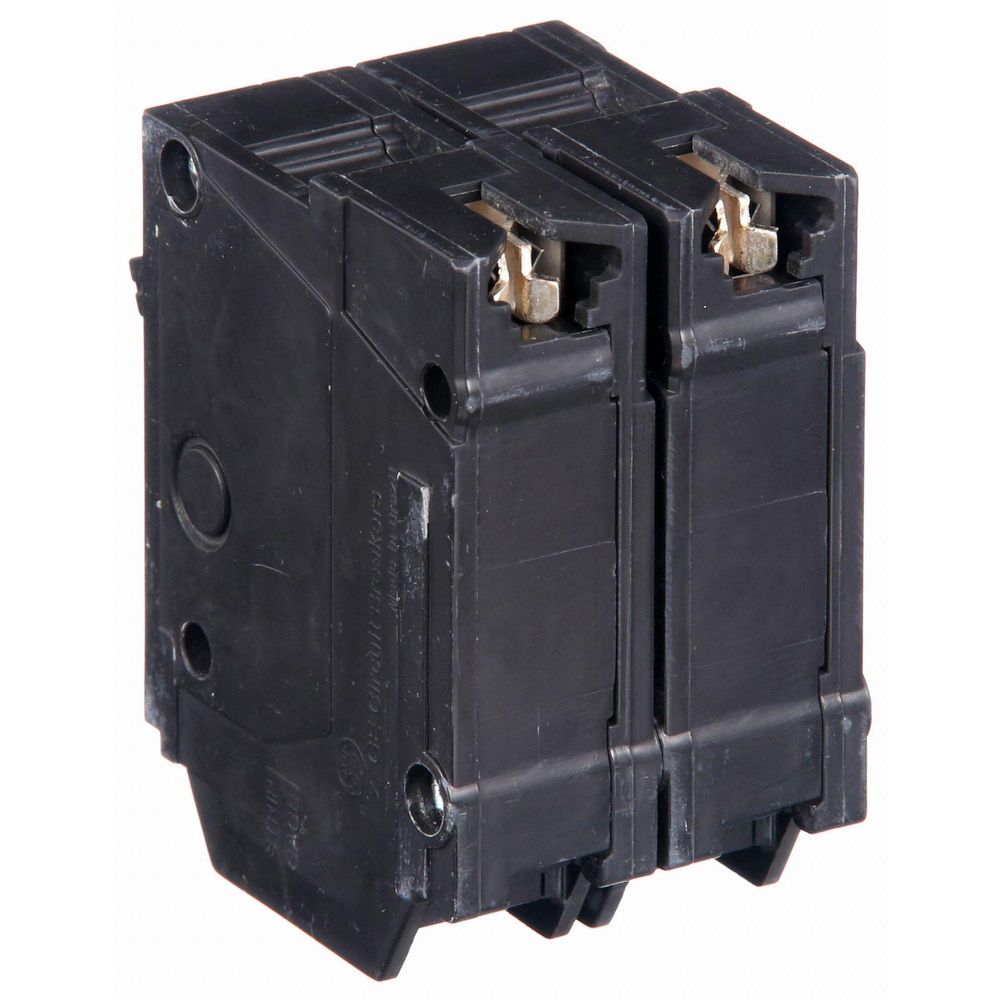

Circuit Breaker,30A,Plug In,
PI_Asset_1768014
Circuit Breaker,30A,Plug In,
PI_Asset_1768014

#937010-7 | Pkg Qty: 1

$71.83 pkg | $71.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Wire Size
8 AWG
Air @ 120 VAC
10kA
Mfr. Part Number
THQL2130HID
Amperage
30 A
Minimum Wire Size
14 AWG
Amps
30 A
Number of Poles
2
Brand
GE
Package Quantity
1
Circuit Breaker Type
High intensity Discharge
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Single
Depth
2.38 in.
Phase Connection
Any
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Series
THQL
Frame Size
100A/THQ
Shipping Weight
3.6 lb.
High Amp Trip Setting
600
Terminal Connection
Screw Clamp
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120 - 240VAC
Length
3.28 in.
Width
2 in.
Maximum Air Rating
10kA at 120/240VAC
General
AIR @ 120VAC
10kA
Circuit Breaker Mounting Style
Plug In
Circuit Breaker Actuator
Toggle
Compatible Panelboard/Load Center Series
AQ

Product Description

These THQP, THQL, and THHQL series miniature circuit breakers plug into place in panelboards and load centers without requiring DIN rail, so they're easier to install than unit-mount breakers. They interrupt currents when faults are detected in the circuit. These breakers connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center. They're UL listed for use in HACR (heating, air conditioning, and refrigeration) applications.
