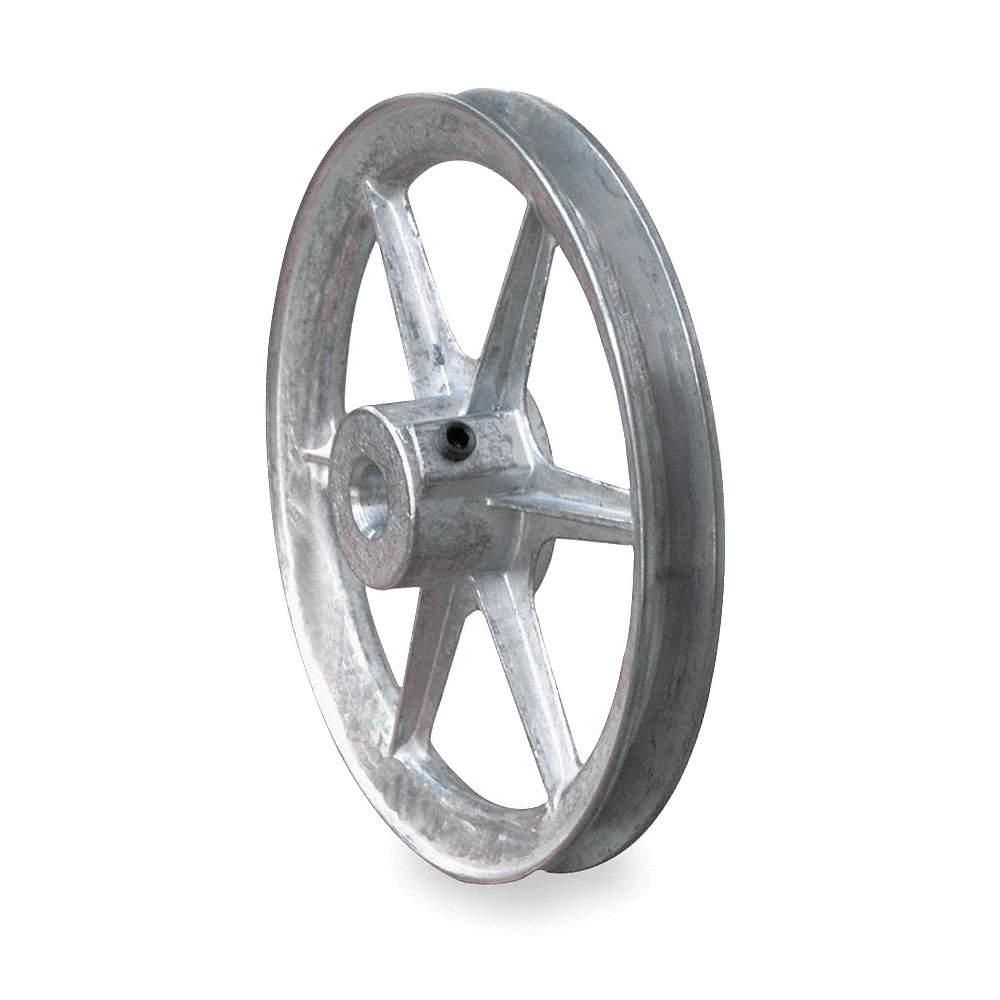

Congress Standard V-Belt Pulley: 1 Grooves, 14" Pulley Outside Dia., 5/8" Pulley Bore Dia.

Hover over image to magnify
V-Belt Pulley,1 Groove,14.00"
V-Belt Pulley,1 Groove,14.00"

#937010-4 | Pkg Qty: 1

$86.03 pkg | $86.03 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CONGRESS
Package Quantity
1
Mfr. Part Number
CA1400X062KW
Shipping Weight
3.26 lb.
General
3L Belt Pitch Dia.
13.55 in
Keyway Width
3/16 in
3L Pitch Diameter
13.55 in
Length through Bore
1 3/32 in
4L Pitch Diameter
13.75 in
Material Fabrication
Cast
4L or A Belt Pitch Dia.
13.85 in
Material Grade
Zamak 3
A Pitch Diameter
13.75 in
Maximum Bore Diameter
5/8 in
Bore Type
Fixed
Number of Grooves
1
Bushing Required
None
Pitch Diameter
13 3/4 in
Face Width
0.69 in
Pitch Diameter for V-Belt Section
3L: 13.55 in / 4L: 13.75 in / A: 13.75 in
Fits Shaft Dia.
5/8 in
Pulley Bore Dia.
5/8 in
For Belt Family
Classical, Fractional Horsepower
Pulley Bore Type
Fixed Bore
For Belt Trade Size
4L, A
Pulley Construction
Spoked
For V-Belt Section
3L, 4L, A
Pulley Material
Die Cast Zamak 3
For V-Belt Type
Classical
Pulley Outside Dia.
14 in
Hub Projection
0.594 in
Pulley Type
Standard V-Belt Pulley
Keyway
Yes
Resistance Properties
Corrosion Resistant, Impact Resistant
Keyway Depth
3/32 in
Set Screw Included
Yes
Keyway Size Type
0.187 in x 0.093 in
Set Screw Size
5/16 in

Product Description

Standard V-Belt Pulley, For V-Belt Section 3L, 4L, A, Number of Grooves 1, Pulley Outside Dia. 14, Pulley Bore Type Fixed Bore, Pulley Bore Dia. 5/8, Pulley Material Die Cast Zamak 3, None Bushing Required, Fits Shaft Dia. 5/8, 3L Belt Pitch Dia. 13.55, 4L or A Belt Pitch Dia. 13.85, Construction Spoked, Industry Number CA1400X062KW, Keyway Size Type 0.187 in x 0.093, Set Screw Included Yes

Item Barcode
9370104
V-Belt Pulley,1 Groove,14.00"
 NameItemDescription
Grainger DropshipGrainger Dropship54XM76
UNSPSC CODESUNSPSC CODES31171804
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
