SPEEDAIRE

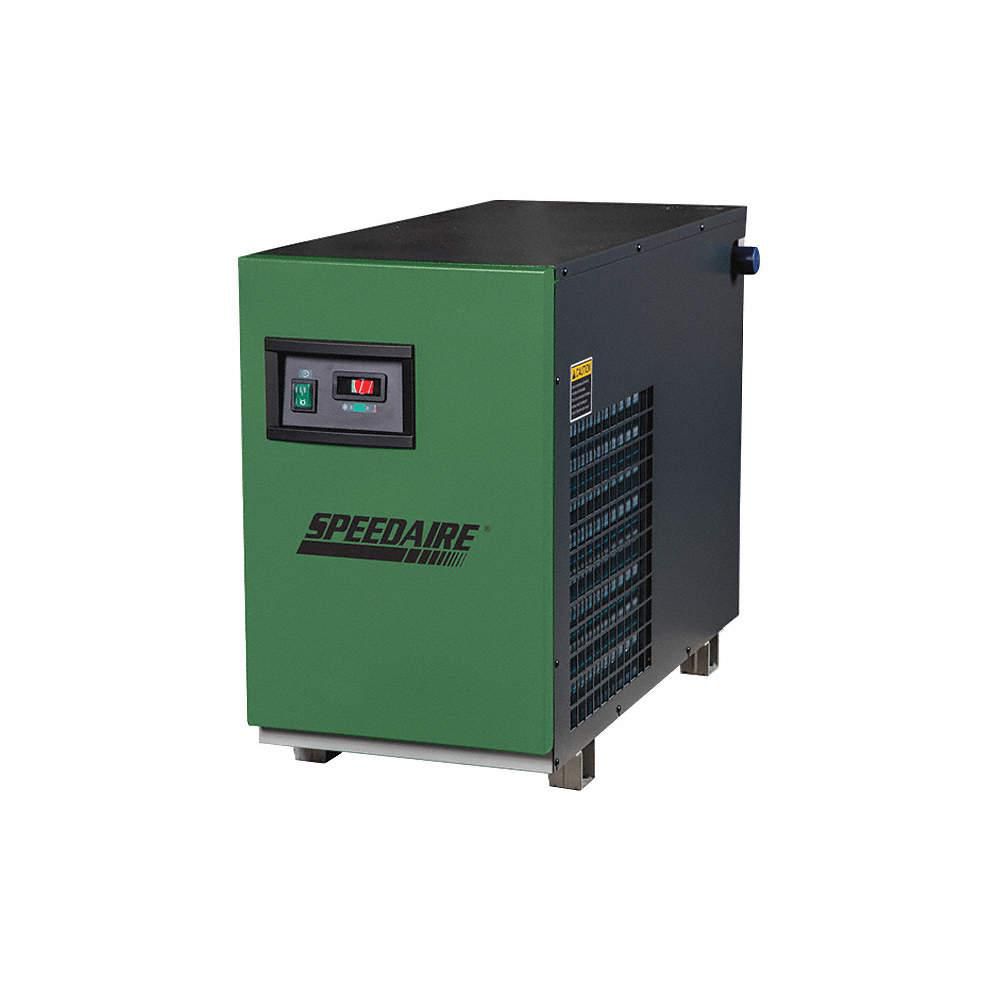

Refrigerated Air Dryer: ISO Class 5, 75 cfm, 115V AC, 1 in NPT, 38°F Dew Point, 0.52 kW
Hover over image to magnify
#936793-4 | Pkg Qty: 1
$3,367.00 pkg | $3,367.00 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SPEEDAIRE
Mfr. Part Number
435Y05
Finish
Powder Coated
Overall Height
24 in.
Full Load Amps
5.6 A
Package Quantity
1
Item
Compressed Air Dryer
Shipping Weight
105 lb.
General
Air Inlet Gender
Female
Heat Exchanger Material
Stainless Steel
Air Inlet Type
NPT
ISO Class - Air Treatment
5
Air Outlet Size
1 in
Includes
Electronic Drain Valve, Power Cord
Air Outlet Type
NPT
Input Voltage - Air Treatment
115V AC
Bracket Kit
No
Max. Flow - Air Treatment
75 cfm
Bracket Kit Included
No
Max. Incoming Pressure - Air Treatment
232 psi
Connection Size - Air Treatment
1 in NPT
Phase - Air Treatment
Single
Features
Dew Point indicator, On/Off Switch
Refrigerant
R-134A
For Maximum Compressor Output Power
20 hp
Refrigeration Compressor HP
1/2 hp
Full Load Current
5.6 A
Refrigeration Compressor Horsepower
0.5 hp
Product Description
This refrigerated compressed air dryer helps to dry air by passing it through a refrigerated heat exchanger. By cooling the air that enters the compressor, the dryer allows water vapor to condensate and drain out. Providing dry air can help protect your pneumatic piping, tools, and equipment.
Item Barcode
Ref Comp Air Dryer,75 Cfm,232
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 435Y05 | |
 | UNSPSC CODES | 23201202 | |
 | VMRS (ATA) CODES | 053-006-009 | Ref Comp Air Dryer,75 cfm, |
