ENERPAC

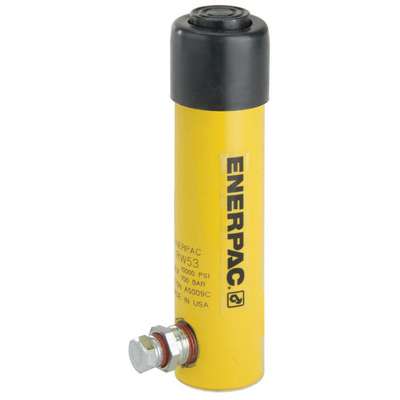

Hydraulic Ram: 5 ton Nominal Capacity, 3" Nominal Stroke Length, 6.5" Retracted Height

Hover over image to magnify
Hydraulic Ram,5 Ton,3-1/8"
Hydraulic Ram,5 Ton,3-1/8"

#936786-4 | Pkg Qty: 1

$477.36 pkg | $477.36 ea

Technical Specifications

Key Specifications
Body Material
Steel
Item
Hydraulic Ram
Brand
ENERPAC
Pack Quantity
1
Includes
Saddle
Stroke Length
3-1/8 in.
General
Base Bolt Circle Dia.
1 in
Nominal Stroke Length
3 in
Center Hole Dia.
1 in
Oil Capacity Push
2.97 cu in
Collar Thread Size
1-1/2"-16
Outside Dia.
1.5 in
Effective Push Area
0.99 sq in
Plunger Dia.
1 in
Extended Height
9.5 in
Plunger Thread Size
3/4"-16
Max. Pressure
10,000 psi
Retracted Height
6.5 in
Max. Push Capacity
5 ton
Single Acting/Double Acting
Single Acting

Product Description

Solid-plunger block-body hydraulic cylinders are single-acting, which means they provide movement in one direction and have an internal spring that returns the cylinder to its starting position.

Block-body hydraulic cylinders are linear, single-acting cylinders that provide movement in one direction and have a spring that returns the rod to the starting position. They can be used for push and pull operation. They can be mounted directly to the top or bottom of a fixture and have a compact design that allows them to be installed in confined spaces. Block-body hydraulic cylinders can be used installed in medium-cycle, low- and high-pressure applications such as machining, testing stations, and hydraulic presses.

Item Barcode
9367864
Hydraulic Ram,5 Ton,3-1/8"
  Name Item Description
Grainger Dropship Grainger Dropship 5uxa3
UNSPSC CODES UNSPSC CODES 27121602
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009
