DAKE CORPORATION

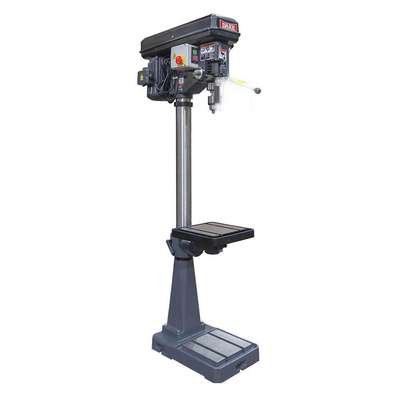

Dake Corporation Floor Drill Press: Belt, Variable, 46 RPM – 3, 550 RPM, 115 VAC /Single-Phase, 9"

Hover over image to magnify
Floor Drill Press,Belt,18",2
PI_Asset_1762465
Floor Drill Press,Belt,18",2
PI_Asset_1762465

#936772-1 | Pkg Qty: 1

$3,410.02 pkg | $3,410.02 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps AC
20
Overall Depth
23-5/8 in.
Application
General Purpose Drill Press
Overall Height
71 in.
Brand
DAKE CORPORATION
Overall Width
15 in.
Chuck Size
5/8 in.
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
649 lb.
Horsepower
2 HP
Speed Control
Variable
Hz
60
Swing
18 in.
Item
Floor Drill Press
Voltage
120
Mfr. Part Number
977600-1V
General
Chuck Capacity
5/8 in
Maximum Spindle-to-Table Height
28 3/8 in
Chuck Style
Keyed
Minimum Spindle Speed
46 RPM
Column Diameter
3 5/8 in
Nominal Voltage
115V AC
Current
20 A
Quill Diameter
2 1/2 in
Drill Press Application
Drilling, Tapping
Speed Adjustment
Knob
Drill Press Type
Floor Stand
Speed Range
46 to 3,550 RPM
Drill Spindle Travel
5 in - 6 in
Spindle Speed Range
46 RPM - 3,550 RPM
Drilling Capacity in Steel
1 in
Spindle Travel
5 in
Drilling Capacity in Wood
1 in
Spindle-to-Column Distance
9 in
Guard Included
Yes
Table Length
13 3/4 in
Includes
5/8 in Keyed Chuck, Drift for Bit Removal, HDPE Chip and Chuck Guard
Table Slot
Yes
Maximum Overall Height
71 in
Table Width
13 3/4 in
Maximum Spindle Speed
3,550 RPM
Tapping Compatible
Yes
Maximum Spindle-to-Base Height
50 in
Tilting Angle
180 Degrees

Product Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 18", Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1", Capacity Cast Iron Not Specified, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Drift, HDPE Chip, Keyed Chuck, Power Down Feed Included No, Voltage 120, Amps AC 20.0, Number of Speeds Variable, Chuck Size 5/8", Spindle Speed 36 to 3550 rpm, Spindle Travel 5", Base Size 15 in x 23-5/8", Table Work Surface 13-3/4 in x 13-3/4", Hz 60, Phase 1
