CENTURY

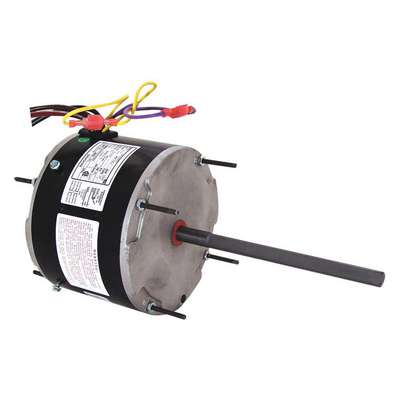

Century Condenser Fan Motor, 1/3 to 1/8 HP, Permanent Split Capacitor, Nameplate RPM 825

Hover over image to magnify
Condenser Fan Motor,1/8to1/3
Condenser Fan Motor,1/8to1/3

#936698-1 | Pkg Qty: 1

Shop Category
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:
Shop All Products

Technical Specifications

Key Specifications
Bearings
Sleeve
Nameplate RPM
825
Brand
CENTURY
Number of Speeds
1
Duty
Continuous
Output Watts
250 W
Enclosure
Totally Enclosed Air-Over
Overall Length
12-7/16 in.
Frame
48
Package Quantity
1
Full Load Amps
2.1
Phase
Single
Hz
60
Replacement For
Mfr. No. D5488, 3459
Insulation Class
B
Rotation
CW/CCW
Item
Condenser Fan Motor
Service Factor
1
Lead Length
48 in.
Shaft Length
6-3/4 in.
Length Less Shaft
5-3/4 in.
Shaft Orientation
All Angle
Mfr. Part Number
ORM5488
Shaft Type
Double Flat
Motor Design
Permanent Split Capacitor
Shipping Weight
15.55 lb.
Motor Type
Permanent Split Capacitor
Stud Size
#8-32
Mounting
Stud
Thermal Protection
Auto
NEMA/IEC Frame
48Y
Voltage
208-230 VAC
General
Body Dia.
5 5/8 in
Motor Shaft Design
Double-Flat
Bolt Circle Dia.
5 1/8 in
Motor Shaft Rotation
CW/CCW
Capacitor Required
2MDV6
Motor Sub Application
Condenser Fan
Features
All Angle Mounting, Energy Efficient PSC Design, Removable Drain Plugs Each End, Rheem Mounting Holes
Motor Thermal Protection
Auto
HP
1/3 to 1/8
Mounting Stud Length
1 3/16 in
Includes
Belly Band
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Ins. Class
B
No. of Speeds
1
Max. Ambient Temp.
70 °C
RPM Range
0-1,000
Motor Application
HVAC/R
Removable Base
Yes
Motor Bearings
Sleeve
Shaft Dia.
1/2 in
Motor Efficiency Group
Energy Efficient
Standards
CSA Certified, UL Recognized
Motor Enclosure Design
Totally Enclosed Air-Over
Stud Pattern
2-1/4 x 2-1/4"
Motor Flange Type
Non-Ventilated
Stud Quantity
4
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
All Angle
Usable @ 208V
Yes
Motor Mounting Type
Stud
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Service Factor
1

Product Description

Multi-HP permanent split capacitor (PSC) condenser fan AC motors, also known as truck stock motors, feature a multi-horsepower configuration that can replace condenser fan motors within a specific horsepower range. They come with a plug that can reverse the motor shaft rotation. Motors have a high starting torque and come with a capacitor that decreases the amount of power consumed for a given load making them more energy efficient than shaded pole motors.

Expertly Selected Product Pairings

Run Capacitor,7.5 Mfd,370 Vac,
$4.75 pkg | $4.75 ea
Item: 911864-9 | Pkg Qty: 1

Documents

Century 4-in-1 Motor Selection Guide
