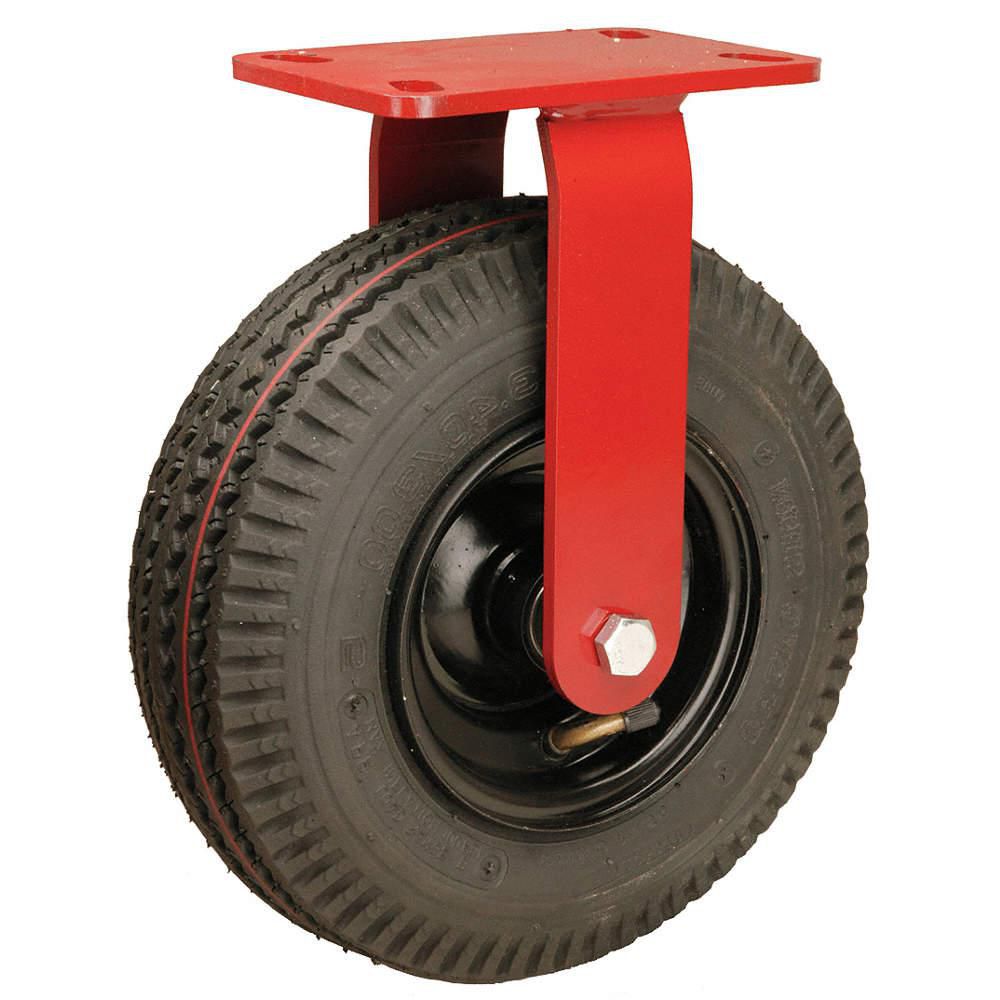

Hamilton Light- Medium Duty, Rigid Plate Caster with Pneumatic Wheels; 480 lb. Load Rating, 10 in. Wheel Dia.

Hover over image to magnify
Plate Cstr w/ Pneumatic Whls ,
PI_Asset_1758964
PI_Asset_1769190
Plate Cstr w/ Pneumatic Whls ,
PI_Asset_1758964
PI_Asset_1769190

#936618-8 | Pkg Qty: 1

$177.84 pkg | $177.84 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HAMILTON
Load Rating
480 lb.
Caster Brake Included
No
Mfr. Part Number
R-7010-PRB
Caster Brake Type
No Brake included
Mounting Bolt Diameter
1/2 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
12-1/2 in.
Caster Plate Hole Pattern
A
Non-Marking
No

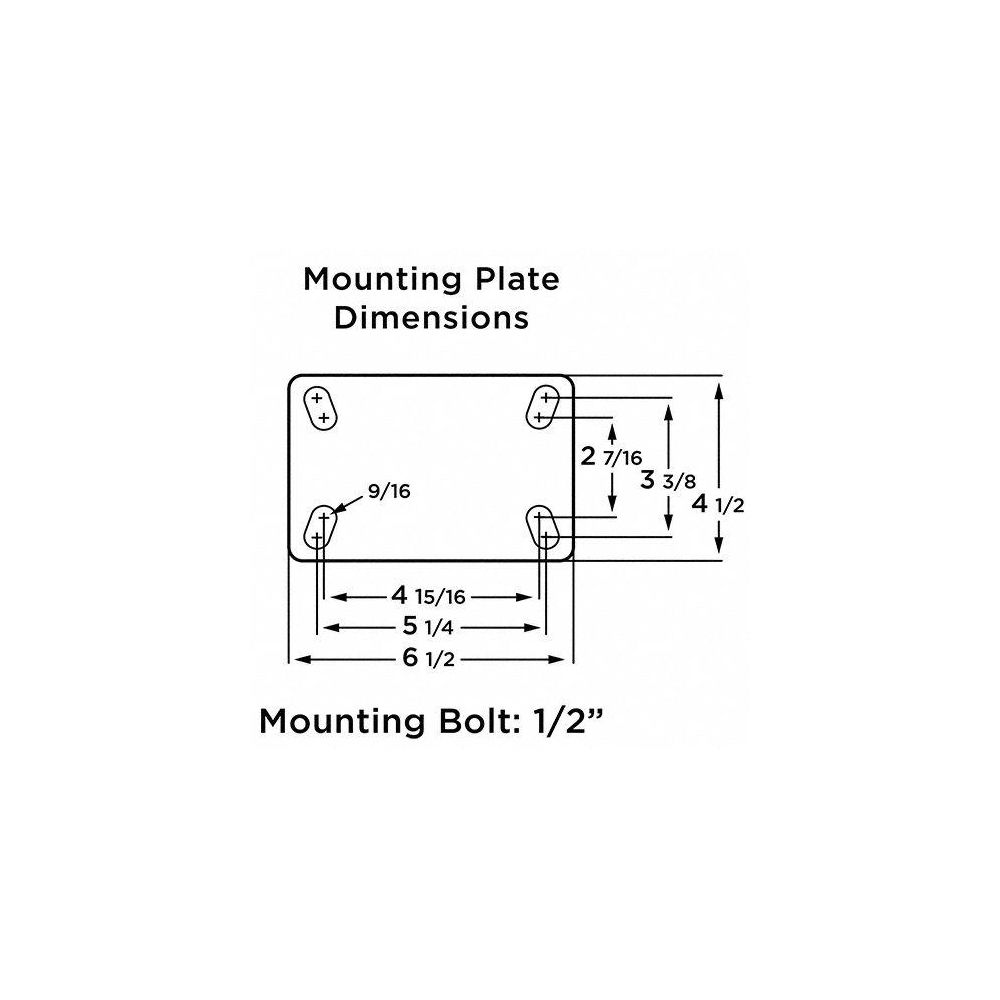

Caster Plate Size
4-1/2 in. x 6-1/2 in.
Number of Mounting Holes
4
Caster Wheel Bearings
Precision Ball
Number of Wheels
1
Caster Wheel/Tread Material
Rubber
Outside Bolt Hole Spacing
3-3/8 in. x 5-1/4 in.
Caster/Wheel Tread
Sawtooth
Package Quantity
1
Durometer
60 Shore A
Plate Caster Sub-Type
Rigid
Frame Finish
Enamel
Shipping Weight
11.4 lb.
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
No
Wheel Diameter
10 in.
Inside Bolt Hole Spacing
2-7/16 in. x 4-15/16 in.
Wheel Width
3-1/2 in.
Item
Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
General
Brake Type
No Brake Included
Mounting Plate Bolt Hole Pattern
A
Caster Frame Material
Steel
Mounting Plate Size
4-1/2 in x 6-1/2 in
Caster Mounting Type
Plate
Mounting Plate Size (Bolt Hole Pattern)
4-1/2 in x 6-1/2 in (A)
Caster Product Group
Rigid Caster
Operating Temperature Range
-30° to 120°F
Caster Temp. Range Available
Yes
Tire Rim Dia.
5 in
Hub Materials
Steel
Wheel Bearing Type
Precision Ball
Hub Position
Symmetrical
Wheel Dia.
10 in
Hub Width
3"
Wheel/Tread Hardness
60 Shore A
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Rubber
Mounting Bolt Dia.
1/2 in

Product Description

Extra-heavy-duty plate casters with pneumatic wheels have thick steel frames and heavy-duty bearings. They can bear heavier loads, withstand rougher terrain, and absorb more shock and impact than medium-duty plate casters with pneumatic wheels. Pneumatic wheels have air-filled tires that cushion heavy loads when transporting electronics and other equipment that is sensitive to shock and vibration. Extra-heavy-duty plate casters with pneumatic wheels are suitable for use on heavy carts, trucks, and other equipment used in indoor or outdoor towing applications over rough or uneven terrain, such as aerospace ground support, airport baggage trolleys, and manufacturing and maintenance operations.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
