BOSCH

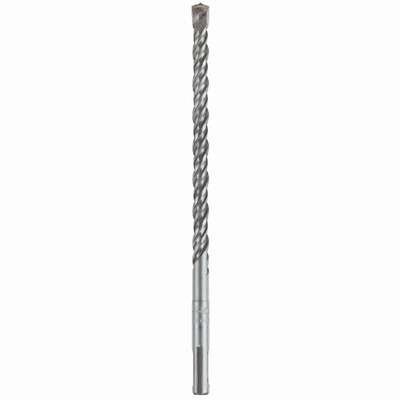

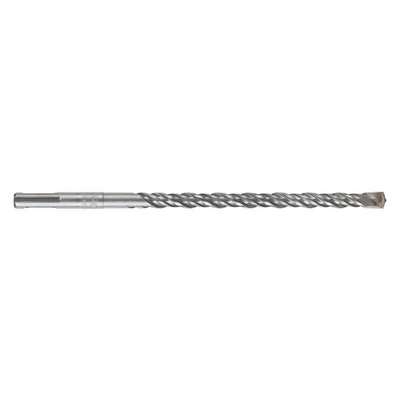

Bosch SDS Plus Rotary Hammer Drill Bit, 5/16 in Drill Bit Size, 8 in Overall Length, 6 in Max Drilling Depth, Carbide
#936272-9Pkg Qty: 1
$12.22 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
BOSCH
Drill Bit Material
Carbide
Drill Bit Size
5/16 in.
Item
Rotary Hammer Drill
Maximum Drilling Depth
6 in.
Mfr. Part Number
HC2052
Overall Length
8 in.
Package Quantity
1
Shank Diameter
25/64 in.
Shank Shape
SDS Plus
Shank Size
25/64 in.
Shipping Weight
.16 lb.
Brand
BOSCH
Overall Length
8 in.
Drill Bit Material
Carbide
Package Quantity
1
Drill Bit Size
5/16 in.
Shank Diameter
25/64 in.
Item
Rotary Hammer Drill
Shank Shape
SDS Plus
Maximum Drilling Depth
6 in.
Shank Size
25/64 in.
Mfr. Part Number
HC2052
Shipping Weight
.16 lb.
General
Application
For Concrete And Masonry Drilling
Decimal Equivalent
0.3125
Drill Bit Finish
Bright (Uncoated)
Drill Bit Grouping
Set
Drilling Length
6 in.
Finish - Machining
Bright (Uncoated)
For Tool Type
Rotary Hammer
For Use With
Rotary Hammer
Impact Rated
No
Material - Machining
Carbide
Measurement System
Fractional Inch
Number of Cutter Heads
2
Shank Type - Machining
SDS Plus
Sub Brand
Bulldog
Application
For Concrete And Masonry Drilling
For Use With
Rotary Hammer
Decimal Equivalent
0.3125
Impact Rated
No
Drill Bit Finish
Bright (Uncoated)
Material - Machining
Carbide
Drill Bit Grouping
Set
Measurement System
Fractional Inch
Drilling Length
6 in.
Number of Cutter Heads
2
Finish - Machining
Bright (Uncoated)
Shank Type - Machining
SDS Plus
For Tool Type
Rotary Hammer
Sub Brand
Bulldog
Product Description

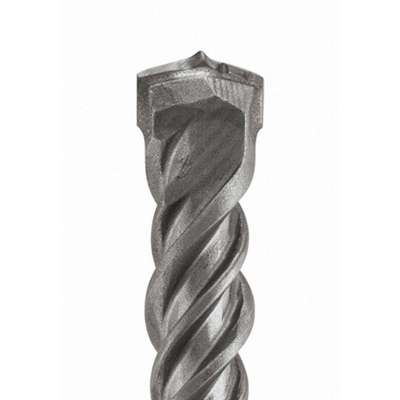

These drill bits have a carbide tip with multiple cutters for creating holes in concrete and masonry. The bits' SDS-Plus shank prevents them from slipping in high-torque drilling applications. The bits install into rotary hammer drills with SDS-Plus chucks, and they can be changed in the chucks with one hand. SDS-Plus chucks have spring-loaded balls that fit into the grooves on the bits' shanks to hold the bits in place in the chucks.
