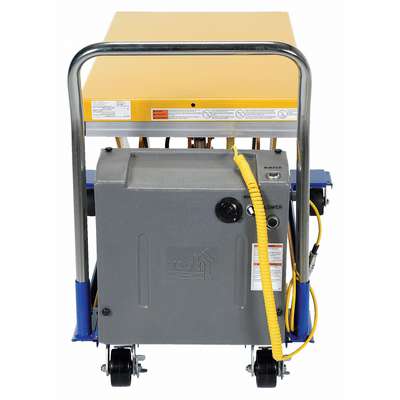

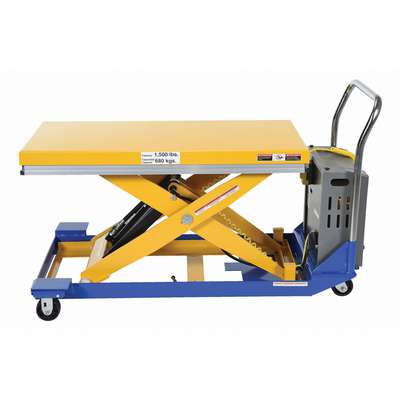

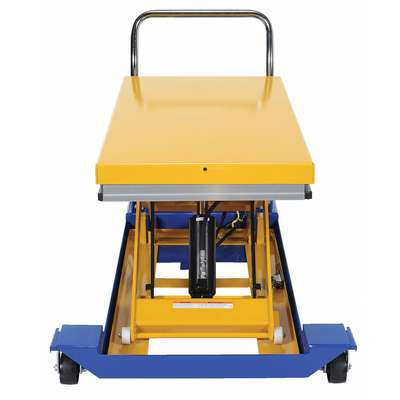

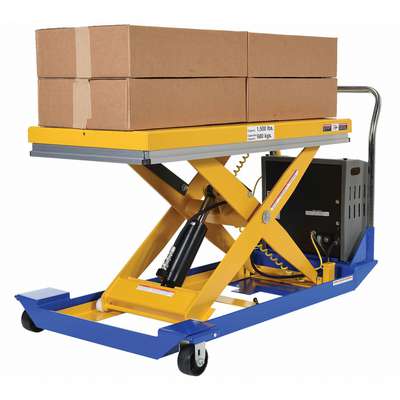

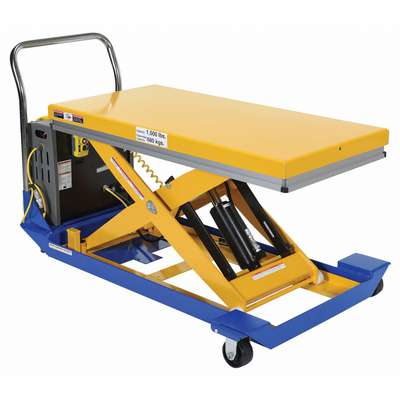

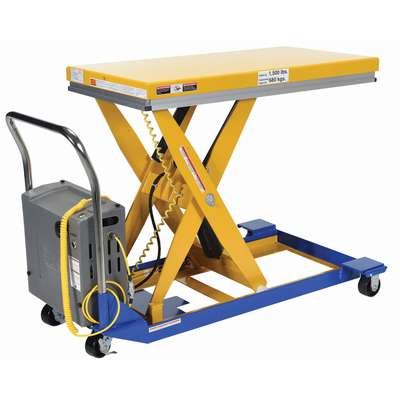

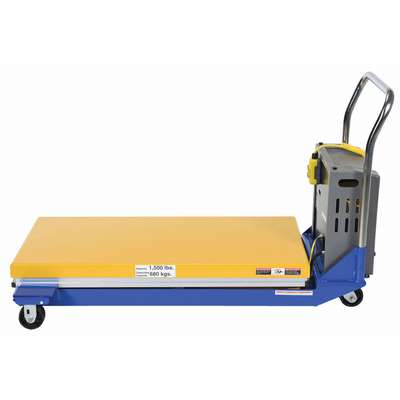

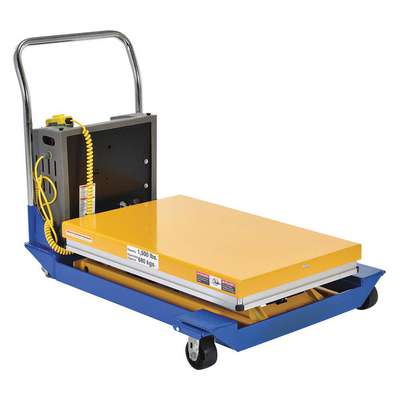

Vestil Powered-Lift/Manual-Push Mobile Scissor-Lift Table, 1,500 lb. Load Capacity, 48" x 24"

Hover over image to magnify

#936176-6Pkg Qty: 1

$4,981.84 pkg

This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

VESTIL

Frame Material

Steel

Handle Type

Raised

Item

Powered-Lift/Manual-Push Mobile Scissor-Lift Table

Lift Control

Push Button

Lift Mechanism

Motor

Load Capacity

1500 lb.

Maximum Lifting Height

42-1/2 in.

Mfr. Part Number

CART-24-15-DC

Minimum Lifting Height

9 in.

Operation

Powered

Overall Height

36 in.

Overall Length

59 in.

Overall Width

36 in.

Package Quantity

Platform Length

48 in.

Platform Material

Steel

Platform Width

24 in.

Shipping Weight

509 lb.

Wheel Diameter

4 in.

Wheel Type

Tread on Core

Brand

VESTIL

Overall Height

36 in.

Frame Material

Steel

Overall Length

59 in.

Handle Type

Raised

Overall Width

36 in.

Item

Powered-Lift/Manual-Push Mobile Scissor-Lift Table

Package Quantity

Lift Control

Push Button

Platform Length

48 in.

Lift Mechanism

Motor

Platform Material

Steel

Load Capacity

1500 lb.

Platform Width

24 in.

Maximum Lifting Height

42-1/2 in.

Shipping Weight

509 lb.

Mfr. Part Number

CART-24-15-DC

Wheel Diameter

4 in.

Minimum Lifting Height

9 in.

Wheel Type

Tread on Core

Operation

Powered

General

Battery Voltage

Brake Type

Face Contact Brake

Caster Dia.

5 in

Caster Wheel Dia.

4 in

Charger Type

On-Board

Handle Height

36 in.

Includes

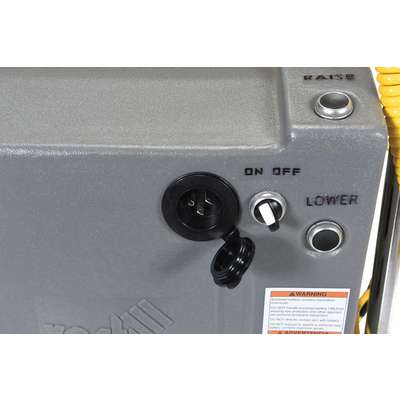

Battery Charger, Push Button, Key-Operated ON/OFF Control

Lifting Height Max.

42 1/2 in

Lifting Height Min.

9 in

Overall LxWxH

59 in x 36 in x 36 in

Platform LxW

48 in x 24 in

Platform Type

Solid

Scissor Type

Single

Up Speed Seconds

17 sec

Wheel Configuration

(2) Swivel with Brake, (2) Rigid

Wheel/Tread Material

Phenolic

Battery Voltage

Lifting Height Min.

9 in

Brake Type

Face Contact Brake

Overall LxWxH

59 in x 36 in x 36 in

Caster Dia.

5 in

Platform LxW

48 in x 24 in

Caster Wheel Dia.

4 in

Platform Type

Solid

Charger Type

On-Board

Scissor Type

Single

Handle Height

36 in.

Up Speed Seconds

17 sec

Includes

Battery Charger, Push Button, Key-Operated ON/OFF Control

Wheel Configuration

(2) Swivel with Brake, (2) Rigid

Lifting Height Max.

42 1/2 in

Wheel/Tread Material

Phenolic

Product Description

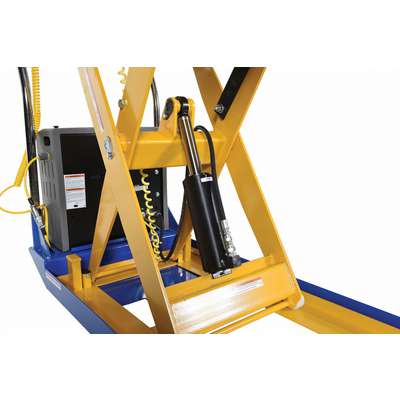

Powered-lift/manual-push mobile scissor-lift tables can raise loads faster and with less physical effort than manual lift tables. The tables have an electric motor that activates their hydraulic lifting mechanism to raise their platform, but they must be pushed manually to move them from one place to another. Their motor is powered by a rechargeable battery and controlled with a push button. The tables' scissor-style support frame allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far during loading and unloading. The tables have brakes or floor locks that can be engaged to prevent the tables from moving unexpectedly.
