SKF

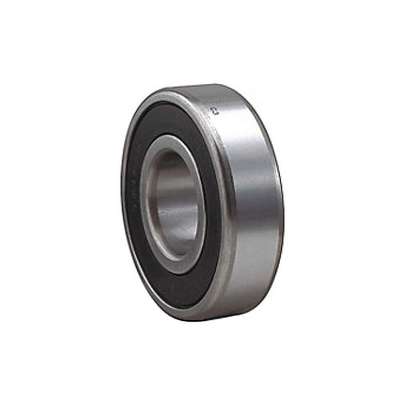

Radial Ball Bearing: 12 mm Bore Dia., 37 mm Outside Dia., 12 mm Width, Double Sealed
#936076-1Pkg Qty: 1
$65.68 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Material
Steel
Bore Diameter
12 mm
Brand
SKF
Cage Material
Pressed Steel
Dynamic Load Capacity
2,300 lb.
Industry Number
6301 2RS JEM
Item
Radial Ball Bearing
Lubrication
MT47 Grease
Maximum RPM
28000 RPM
Mfr. Part Number
6301 2RS JEM
Outside Diameter
37 mm
Package Quantity
1
Radial Ball Bearing Seal/Shield Type
Double Sealed
Seal Material
Synthetic Rubber
Shipping Weight
.1 lb.
Single Row/Double Row
Single Row
Static Load Capacity
900 lb.
Temperature Range
-40 deg. F to 212 deg. F
Width
12 mm
Bearing Material
Steel
Outside Diameter
37 mm
Bore Diameter
12 mm
Package Quantity
1
Brand
SKF
Radial Ball Bearing Seal/Shield Type
Double Sealed
Cage Material
Pressed Steel
Seal Material
Synthetic Rubber
Dynamic Load Capacity
2,300 lb.
Shipping Weight
.1 lb.
Industry Number
6301 2RS JEM
Single Row/Double Row
Single Row
Item
Radial Ball Bearing
Static Load Capacity
900 lb.
Lubrication
MT47 Grease
Temperature Range
-40 deg. F to 212 deg. F
Maximum RPM
28000 RPM
Width
12 mm
Mfr. Part Number
6301 2RS JEM
General
ABEC Rating
1
ABEC Tolerance
1
Ball Material
Alloy Steel
Bearing Industry Number
6301
Bore Diameter Tolerance
+0/-0.007 mm
Bore Tolerance
+0/-.007mm
Closure
Double Sealed
Closure & Seal Type
Double Sealed - Contact Seal
Dynamic Radial Load Capacity
2,300 lbf
Lubricant Material
MT47 Grease
Maximum Axial Load
2,300 lbf
Maximum Speed
28,000 RPM
Maximum Temperature
212 Degrees F
Minimum Temperature
-40 Degrees F
Number of Rows
One
Outer Ring Width
12 mm
Outside Diameter Tolerance
+0/-11 micron
Ring Material
Alloy Steel
Ring Material Grade
100Cr6
Seal Type
Contact
Shield Material
Metal
Static Radial Load Capacity
900 lbf
System of Measurement
Metric
Type
Sealed
ABEC Rating
1
Maximum Temperature
212 Degrees F
ABEC Tolerance
1
Minimum Temperature
-40 Degrees F
Ball Material
Alloy Steel
Number of Rows
One
Bearing Industry Number
6301
Outer Ring Width
12 mm
Bore Diameter Tolerance
+0/-0.007 mm
Outside Diameter Tolerance
+0/-11 micron
Bore Tolerance
+0/-.007mm
Ring Material
Alloy Steel
Closure
Double Sealed
Ring Material Grade
100Cr6
Closure & Seal Type
Double Sealed - Contact Seal
Seal Type
Contact
Dynamic Radial Load Capacity
2,300 lbf
Shield Material
Metal
Lubricant Material
MT47 Grease
Static Radial Load Capacity
900 lbf
Maximum Axial Load
2,300 lbf
System of Measurement
Metric
Maximum Speed
28,000 RPM
Type
Sealed
Product Description
This radial ball bearing features single-row alignment.
Item Barcode
Radial Bearing,Double Seal,
