DAYTON
Rotary Gear Pump, Pump Type Carbonator, 1/3 HP, Voltage 115/230
#935883-2Pkg Qty: 1
$548.46 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
5.6/2.8
Brand
DAYTON
Item
Rotary Gear Pump
Mfr. Part Number
41TK24
Motor Enclosure
ODP
Package Quantity
1
Shipping Weight
24 lb.
Amps
5.6/2.8
Motor Enclosure
ODP
Brand
DAYTON
Package Quantity
1
Item
Rotary Gear Pump
Shipping Weight
24 lb.
Mfr. Part Number
41TK24
General
Amps AC
5.6/2.8
Assembled/Unassembled
Unassembled
Body Material
Cast Iron
GPM Max.
2.2 gpm
HP
1/3 hp
Max. Pressure (PSI)
100 psi
Max. RPM
1,725 RPM
Max. Temp. (F)
210 Degrees F
Max. Viscosity (SSU)
500 SUS
Motor Included
5U257
Phase
1
Pump Head Included
4KHR1
Pump Type
Carbonator
Shaft Material
Steel
Suction Lift (Ft.)
3.2 ft
Temp. Range
32 Degrees to 280 Degrees F
Voltage
115/230
Amps AC
5.6/2.8
Motor Included
5U257
Assembled/Unassembled
Unassembled
Phase
1
Body Material
Cast Iron
Pump Head Included
4KHR1
GPM Max.
2.2 gpm
Pump Type
Carbonator
HP
1/3 hp
Shaft Material
Steel
Max. Pressure (PSI)
100 psi
Suction Lift (Ft.)
3.2 ft
Max. RPM
1,725 RPM
Temp. Range
32 Degrees to 280 Degrees F
Max. Temp. (F)
210 Degrees F
Voltage
115/230
Max. Viscosity (SSU)
500 SUS
Product Description

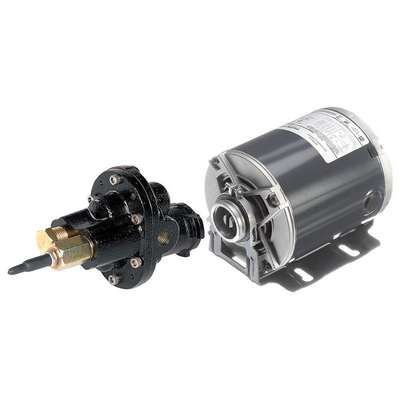

Dayton® self-priming rotary gear pump comes with a pressure relief valve and bidirectional (reversible) motor drive with thermal overload protection. Model has steel spur gears and shafts with Viton® seals. Pump is designed for use with oil-based fluids.
