SCHLAGE ELECTRONICS

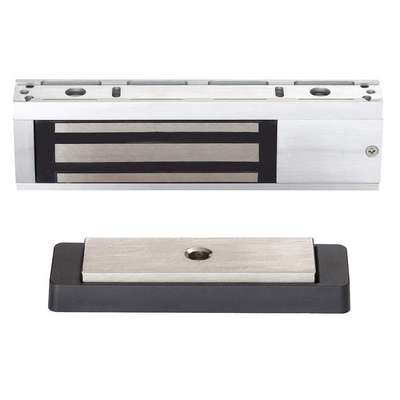

Electromagnetic Lock: 12/24V DC, .75A, .38A, 1 in Armature Dp (In.)

Hover over image to magnify
500lb Magnet, Avs, Dsm, Mbs,
500lb Magnet, Avs, Dsm, Mbs,

#935660-1 | Pkg Qty: 1

$841.80 pkg | $841.80 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SCHLAGE ELECTRONICS
Mfr. Series
M400
Input Voltage
12/24 VDC
Pack Quantity
1
Item
Electromagnetic Lock
Shipping Weight
5.98 lb.
Mfr. Part Number
M420P
General
Amp Draw @ 12V
.75A
Lock Body Depth (In.)
2 1/2 in
Amp Draw @ 24V
.38A
Lock Body Length (In.)
9 in
Armature Depth (In.)
1 in
Lock Body Width (In.)
2 in
Armature Length (In.)
6 in
Options Included
Automatic Voltage Selection, Door Position Switch, Magnetic Bond Sensor, Relock Time Delay
Armature Width (In.)
2 in
Standards
ANSI/BHMA156.23, UL1034, UL10C
Holding Force (Lb.)
500
Total Projection (In.)
4 in

Product Description

Use the SCHLAGE® electromagnetic lock to monitor a controlled area such as a hospital laboratory or a secure area in an airport. Also provides traffic control for doors in a commercial or education building. Bayonet mount makes installation simpler by not requiring the magnet to be held overhead while installing mounting screws. Automatic voltage selection recognizes the voltage applied to the lock. Magnetic bond sensor monitors the strength of the bond between the lock and armature. Door position switch lets you know whether door is open or closed. Relock time delay features a relock delay that is adjustable from 0.5 to 30 seconds. Allows for right-hand or left-hand configuration in the field. 500-lb. holding force.
