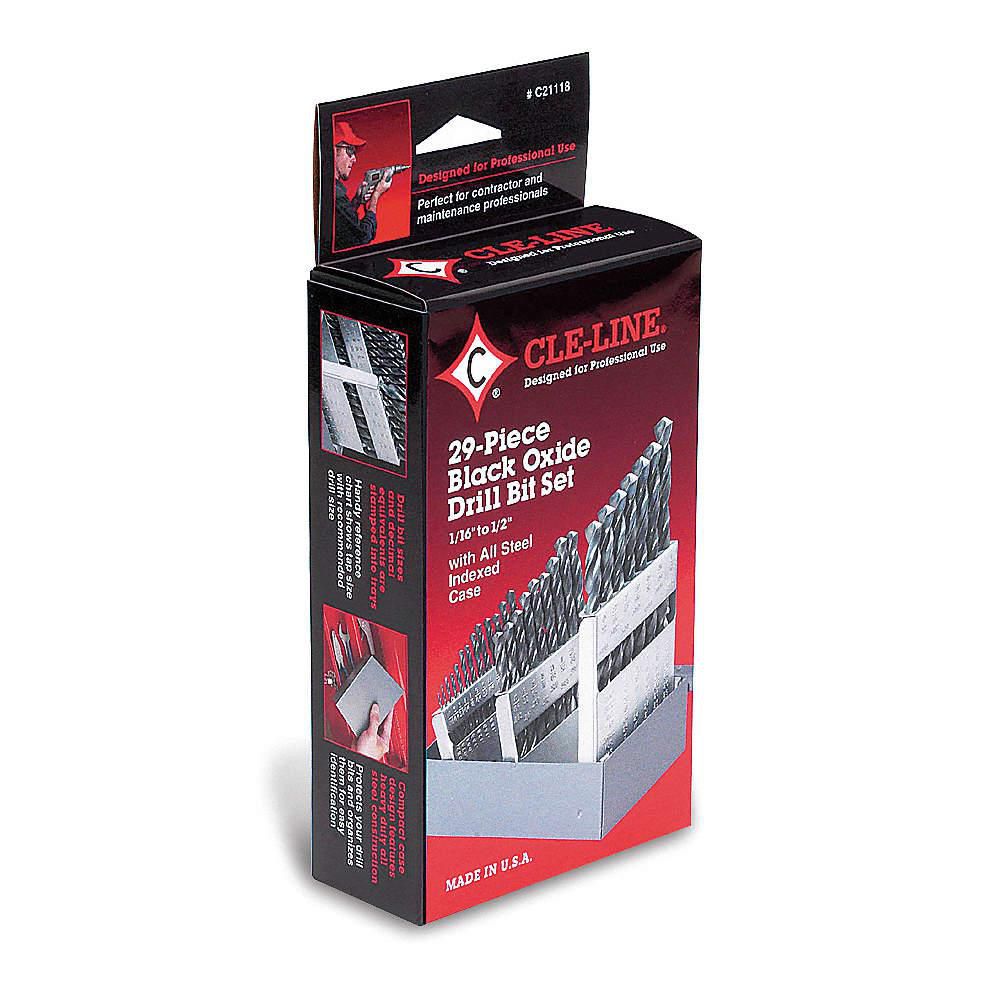

Cle-Line 29-PC Jobber Drill Bit Set, 1/16 in-1/2 in, High Speed Steel, Black Oxide
Hover over image to magnify
#935609-8 | Pkg Qty: 1
$168.16 pkg | $168.16 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLE-LINE
Flute Type
Spiral
Cutting Direction
Right
Grade
General Purpose
Depth x Diameter Ratio
4xD
Item
Jobber Drill Bit Set
Dimension Type
Fractional Inch
List Number
1899
Drill Bit Case Type
Metal Drill Index
Mfr. Part Number
C21118
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
29
Drill Bit Finish
Black Oxide
Package Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
118 deg.
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
1/16 in.-1/2 in. by 1/64 in.
Shipping Weight
3.2 lb.
Drill Bit Sizes Included
1/16 in., 5/64 in., 3/32 in., 7/64 in., 1/8 in., 9/64 in., 5/32 in., 11/64 in., 3/16 in., 13/64 in., 7/32 in., 15/64 in., 1/4 in., 17/64 in., 9/32 in., 19/64 in., 5/16 in., 21/64 in., 11/32 in., 23/64 in., 3/8 in., 25/64 in., 13/32 in., 27/64 in., 7/16 in., 29/64 in., 15/32 in., 31/64 in., 1/2 in.
Sizes Included
1/16 in., 5/64 in., 3/32 in., 7/64 in., 1/8 in., 9/64 in., 5/32 in., 11/64 in., 3/16 in., 13/64 in., 7/32 in., 15/64 in., 1/4 in., 17/64 in., 9/32 in., 19/64 in., 5/16 in., 21/64 in., 11/32 in., 23/64 in., 3/8 in., 25/64 in., 13/32 in., 27/64 in., 7/16 in., 29/64 in., 15/32 in., 31/64 in., 1/2 in.
Finish
Black Oxide
General
Aircraft Drill
No
Largest Drill Bit Size
1/2 in
Application
For Carbon Steel And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Set
Number of Drill Bits
29
Drill Bit Point Type
Conventional Point
Shank Dia.
1/6 in to 1/2 in
Drill Length Class
Jobber Length
Shank Type - Machining
Straight
Finish - Machining
Black Oxide
Smallest Drill Bit Size
1/16 in
Includes
Metal Drill Index
Standards
ASME B94.11M-1993
Product Description
The high-speed steel jobber-length drill bits in these sets provide more flexibility and absorb more shock and vibration than cobalt and carbide jobber-length drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These sets contain multiple drill bits of various sizes.
Item Barcode
Jobber Drill Set,29 Pc,Hss
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6X001 | |
 | UNSPSC CODES | 23241605 | |
 | VMRS (ATA) CODES | 053-006-009 | Jobber Drill Set,29 pc,HSS |
