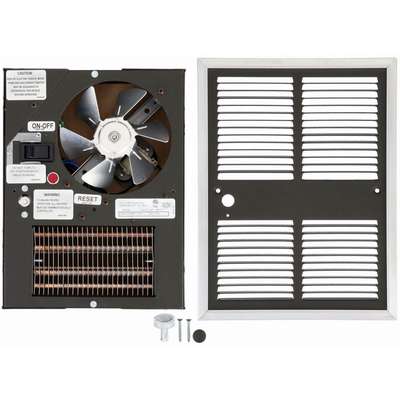

Markel Products Recessed Electric Wall-Mount Heater, 500W/750W/1,000W/1,250W/1,500W/1,750W/2,250W
Hover over image to magnify
#935580-2 | Pkg Qty: 1
$417.20 pkg
| $417.20 ea
Technical Specifications
Key Specifications
Air Flow
100 CFM
Mfr. Part Number
F30522T2DWB
Amperage
10.8 A
Mounting Type
Surface and Recessed
Brand
MARKEL PRODUCTS
Pack Quantity
1
Frequency
60 Hz
Phase
1
Heating Capacity
7680 BtuH
Programming Capability
Not Programmable
Heating Method
Fan Forced
Shipping Weight
11 lb.
Housing Material
Steel
Standards
ETL Listed for US and Canada
Includes
Disconnect Switch, Fan Purge, Thermostat
Tamper Resistant
Yes
Item
Recessed Electric Wall-Mount Heater
Voltage
208 VAC
Manufacturers Warranty Length
1 yr.
General
Air Temp. Rise
71 Degrees F
Nominal Voltage - HVAC
208V AC
Automatic Fan Delay (On/Off)
Yes
Occupancy Sensor
No
Building Management System Compatible
No
Remote Control Functions
No Remote Control Included
Disconnect Switch
Yes
Rough-In Depth
3 5/8 in
Fan Only Operation
No
Rough-In Dimensions - H x W x D
12-1/8 in x 9-1/4 in x 3-5/8 in
Filter Included
No
Rough-In Height
12 1/8 in
Grille Depth
1 in
Rough-In Width
9 1/4 in
Grille Finish
Powder Coated
Setback Control
No
Grille Height
13 1/8 in
Smart Connectivity
No Connectivity
Grille Material
18 ga Steel
Thermal Overheat Protection
Manual Reset
Grille Width
10 in
Thermostat Contact Type
Single Pole
Heater Mounting Position
Horizontal Burn
Thermostat Included
Unit-Mounted
Hold Function
No
Voltage, Phase
208V AC, 1-phase
Key Features
Mechanical Controls, Overheat Protection
Wattage Field Convertible
Yes
Minimum Mounting Distance from Ceiling
6 in
Wattage Output
500W/750W/1,000W/1,250W/1,500W/1,750W/2,250W
Minimum Mounting Height from Floor
6 in
Product Description
Compact recessed electric wall heaters heat areas with limited installation or mounting space, like restrooms, bedrooms, hallways, or offices. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. They have a built-in thermostat.
