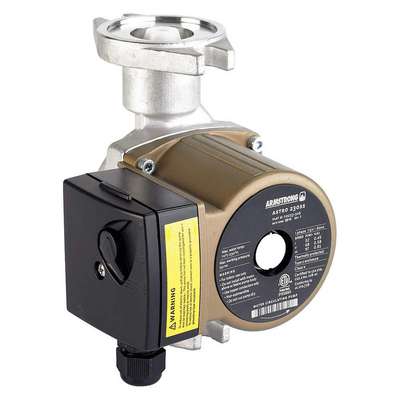

Potable Water Circulating Pump: Multi-Speed, Armstrong, Flanged, 1/8 HP, 115V AC, 18 ft Max. Head
Hover over image to magnify
#935335-4 | Pkg Qty: 1
$337.60 pkg
| $337.60 ea
Technical Specifications
Key Specifications
Amps
0.81
Loop Configuration
Open
Brand
ARMSTRONG PUMPS INC.
Manufacturers Warranty Length
2 yr.
Connection Style
Flange
Mfr. Part Number
110223-306
Drive Type
Direct
Number of Speeds
3
Features
3 Speed, Compact, High Performance, Maintenance Free
Pack Quantity
1
HVAC Circulating Pump Type
Hot Water Circulating Pump
RPM
3600 RPM
Impeller Material
30% Glass-Filled Noryl
Shaft Material
Ceramic
Includes
(2) Gaskets
Shipping Weight
7.55 lb.
Inlet/Outlet Size
1-1/4 in.
Shut-Off
18 ft.
Item
Hot Water Circulating Pump
Standards
ETL
Length
5 in.
General
Body Gasket Material
EPDM
Maximum Flow Rate @ 1 Feet of Head
18 gpm
Brand and Connection Combo
ARMSTRONG PUMPS INC. , Flange
Maximum Flow Rate @ 10 Feet of Head
9 gpm
Brand and Connection Combo Broad
Armstrong, Flanged
Maximum Flow Rate @ 15 Feet of Head
3 gpm
Compatible Discharge Pipe Size
1 1/4 in
Maximum Flow Rate @ 5 Feet of Head
14 gpm
Compatible Intake Pipe Size
1 1/4 in
Maximum Media Temperature
230 Degrees F
Compatible Media Type
Water
Mounting Location
In-Line
Electrical Connection Type
Hardwired
Nameplate Voltage
115V AC
Flange or Union Included
Yes
Number of Flange Mounting Holes
2
For Use With Potable Systems
Yes
Phase and Brand
ARMSTRONG PUMPS INC. Single Phase
Manufacturer Warranty Length
2 yr
Pump Housing Material
Stainless Steel
Maximum Feet of Head
18 ft
Series Family
Astro 2
Product Description
The hot water circulating pump was designed for use in water circulation and in hydronic heating systems. It is ideal for open systems such as domestic hot water recirculation or pressure boosting, and where the use of stainless steel is desired to avoid corrosion.
