Home All Products HVACR Heaters Electric Heaters & Accessories Electric Wall Mount Heaters SKU: 935235-7
MARKEL PRODUCTS

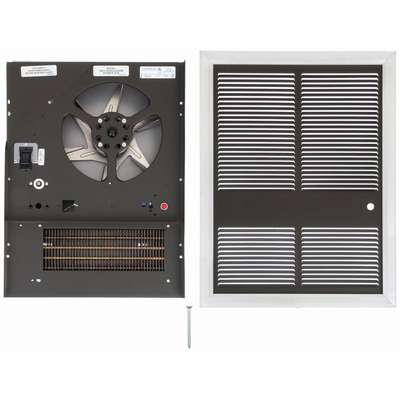

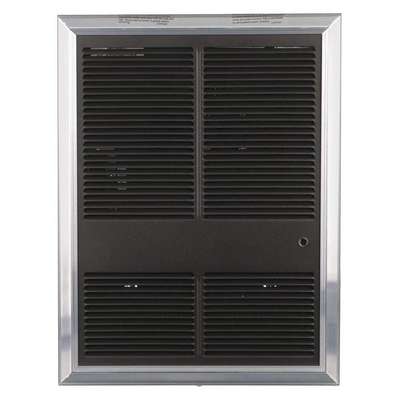

Markel Products Recessed Electric Wall-Mount Heater, 4,000W, 277V AC, 1-phase

Hover over image to magnify
Lg Recssd Elct Wl Heatr,19-1/
PI_Asset_1756918
PI_Asset_1763029
PI_Asset_1770780
Lg Recssd Elct Wl Heatr,19-1/
PI_Asset_1756918
PI_Asset_1763029
PI_Asset_1770780

#935235-7 | Pkg Qty: 1

$775.56 pkg | $775.56 ea

Technical Specifications

Key Specifications
Air Flow
175 CFM
Mfr. Part Number
G3326TD-RP
Amperage
14.4 A
Mounting Type
Surface and Recessed
Brand
MARKEL PRODUCTS
Pack Quantity
1
Frequency
60 Hz
Phase
1
Heating Capacity
13800 BtuH
Programming Capability
Not Programmable
Heating Method
Fan Forced
Shipping Weight
24.55 lb.
Housing Material
Steel
Standards
ETL Listed for US and Canada
Includes
Disconnect Switch, Thermostat
Tamper Resistant
Yes
Item
Recessed Electric Wall-Mount Heater
Voltage
277 VAC
Manufacturers Warranty Length
1 yr.
General
Air Temp. Rise
72 Degrees F
Nominal Voltage - HVAC
277V AC
Automatic Fan Delay (On/Off)
Yes
Occupancy Sensor
No
Building Management System Compatible
No
Remote Control Functions
No Remote Control Included
Disconnect Switch
Yes
Rough-In Depth
4 in
Fan Only Operation
No
Rough-In Dimensions - H x W x D
19-1/2 in x 14-1/8 in x 4 in
Filter Included
No
Rough-In Height
19 1/2 in
Grille Depth
1 in
Rough-In Width
14 1/8 in
Grille Finish
Powder Coated
Setback Control
No
Grille Height
20 13/16 in
Smart Connectivity
No Connectivity
Grille Material
18 ga Steel
Thermal Overheat Protection
Automatic Reset
Grille Width
15 7/8 in
Thermostat Contact Type
Single Pole
Heater Mounting Position
Vertical Burn
Thermostat Included
Tamper-Resistant Unit-Mounted
Hold Function
No
Voltage, Phase
277V AC, 1-phase
Key Features
Mechanical Controls, Overheat Protection
Wattage Field Convertible
No
Minimum Mounting Height from Floor
10 in
Wattage Output
4,000W

Product Description

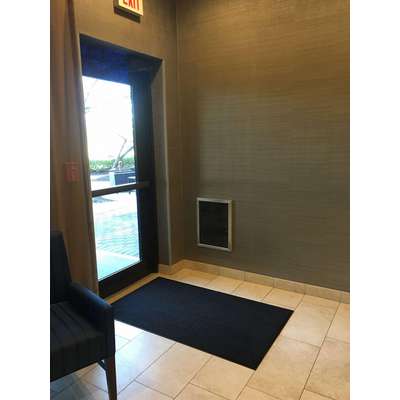

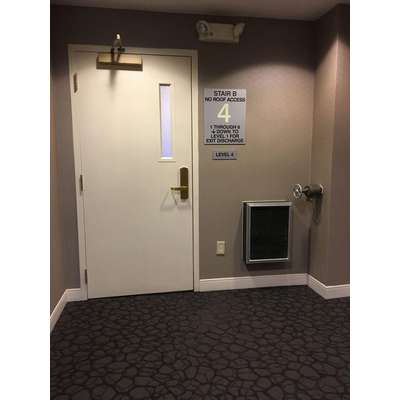

Large recessed electric wall heaters are larger than compact and register heaters and are used to heat areas like offices, reception rooms, family rooms, and other residential and small commercial spaces. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. These heaters have a built-in thermostat.
