ENERPAC

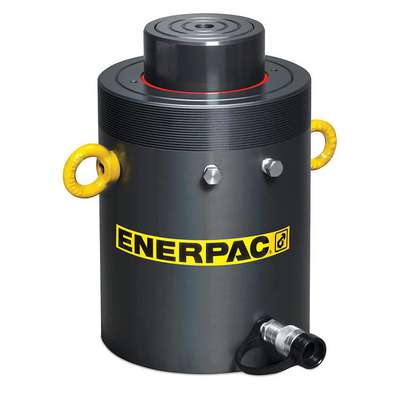

Hydraulic Ram: Single Acting, 200 ton Nominal Capacity, 10" Nominal Stroke Length, Steel, HCG

Hover over image to magnify
Hydraulic Ram,Steel,7.48" Bore
Hydraulic Ram,Steel,7.48" Bore

#935166-7 | Pkg Qty: 1

$10,379.06 pkg | $10,379.06 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Steel
Pack Quantity
1
Brand
ENERPAC
Shipping Weight
300.01 lb.
Item
Hydraulic Ram
Stroke Length
7-7/8 in.
Mfr. Part Number
HCG2008
General
Base Mounting Thread Size
M12
Nominal Stroke Length
10 in
Bore Dia.
7.48 in
Oil Capacity Push
346.04 cu in
Effective Push Area
43.95 sq in
Outside Dia.
9.84 in
Extended Height
23.9 in
Plunger Dia.
5.51 in
Includes
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Retracted Height
16.06 in
Max. Pressure
10,150 psi
Single Acting/Double Acting
Single Acting

Product Description

Hydraulic Ram, Single Acting, High Cycle, Steel, Nominal Capacity 200 ton, Stroke Length 7 7/8 in, Nominal Stroke Length 10 in, Effective Push Area 43.95 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 346.04 cu in, Retracted Height 16.06 in, Extended Height 23.9 in, Outside Dia. 9.84 in, Plunger Dia. 5.51 in, Base Mounting Thread Size M12, Weight 300 lb, Series HCG, Includes (2) Lifting Eyes, Overpressurization Valve, Interchangeable Saddle, Bore Dia. 7.48 in

Item Barcode
9351667
Hydraulic Ram,Steel,7.48" Bore
 NameItemDescription
Grainger DropshipGrainger Dropship55PN99
UNSPSC CODESUNSPSC CODES27121602
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Hydraulic Ram,Steel,7.
