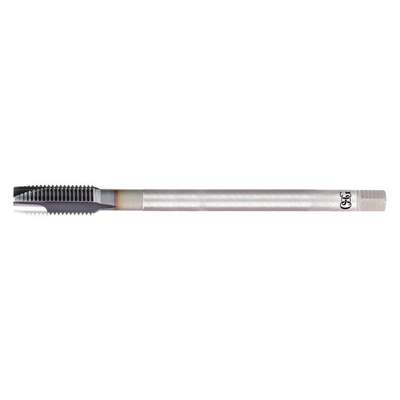

Extension Tap, Thread Size M12x1.5, Metric Fine, Overall Length 180.00 mm, VC-10, V
#935161-1Pkg Qty: 1
$126.90 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Item
Extension Tap
Mfr. Part Number
1653006508
Overall Length
180 mm
Package Quantity
1
Shank Diameter
9.32mm
Shipping Weight
.23 lb.
Thread Length
21 mm
Brand
OSG
Package Quantity
1
Item
Extension Tap
Shank Diameter
9.32mm
Mfr. Part Number
1653006508
Shipping Weight
.23 lb.
Overall Length
180 mm
Thread Length
21 mm
General
55% Thread Drill Size
10.90 mm
65% Thread Drill Size
27/64 in
75% Thread Drill Size
10.50 mm
Extended Neck
Yes
Extended Shank
Yes
Helix Angle
0 Degrees
Material Grade - Machining
16530
Measurement System
Metric
Number of Flutes
3
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Primary Material Application ISO Code
H, M, P
Secondary Material Application
Aluminum, Cast Iron, Die Steel
Secondary Material Application ISO Code
K, N, P
Series
16530
Shank Length
108.00 mm
Spiral Direction
Neutral
Square Size
6.98 mm
Tap Chamfer
Modified Bottom, Semi-Bottom
Tap Finish
V
Tap Grouping
Individual
Tap Material
VC-10
Tap Style
Spiral Point
Tap Thread Size
M12x1.50
Tap Type
Spiral Point
Thread Direction
Right Hand
Thread Limit
D6
Thread Limit / Class of Fit
D6
Thread Pitch
1.50mm
Thread Size
M12x1.5
Thread Standard
Metric Fine
55% Thread Drill Size
10.90 mm
Spiral Direction
Neutral
65% Thread Drill Size
27/64 in
Square Size
6.98 mm
75% Thread Drill Size
10.50 mm
Tap Chamfer
Modified Bottom, Semi-Bottom
Extended Neck
Yes
Tap Finish
V
Extended Shank
Yes
Tap Grouping
Individual
Helix Angle
0 Degrees
Tap Material
VC-10
Material Grade - Machining
16530
Tap Style
Spiral Point
Measurement System
Metric
Tap Thread Size
M12x1.50
Number of Flutes
3
Tap Type
Spiral Point
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Thread Direction
Right Hand
Primary Material Application ISO Code
H, M, P
Thread Limit
D6
Secondary Material Application
Aluminum, Cast Iron, Die Steel
Thread Limit / Class of Fit
D6
Secondary Material Application ISO Code
K, N, P
Thread Pitch
1.50mm
Series
16530
Thread Size
M12x1.5
Shank Length
108.00 mm
Thread Standard
Metric Fine
Product Description
The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. High-performance taps are harder and more wear-resistant than high-speed steel taps. They provide good precision and accuracy in threading tasks. Spiral-point taps have straight flutes with a spiral point that pushes chips in front of the tap as it moves into a hole and out the other side, eventually forcing the chips out of the hole. They are used for threading through holes.
